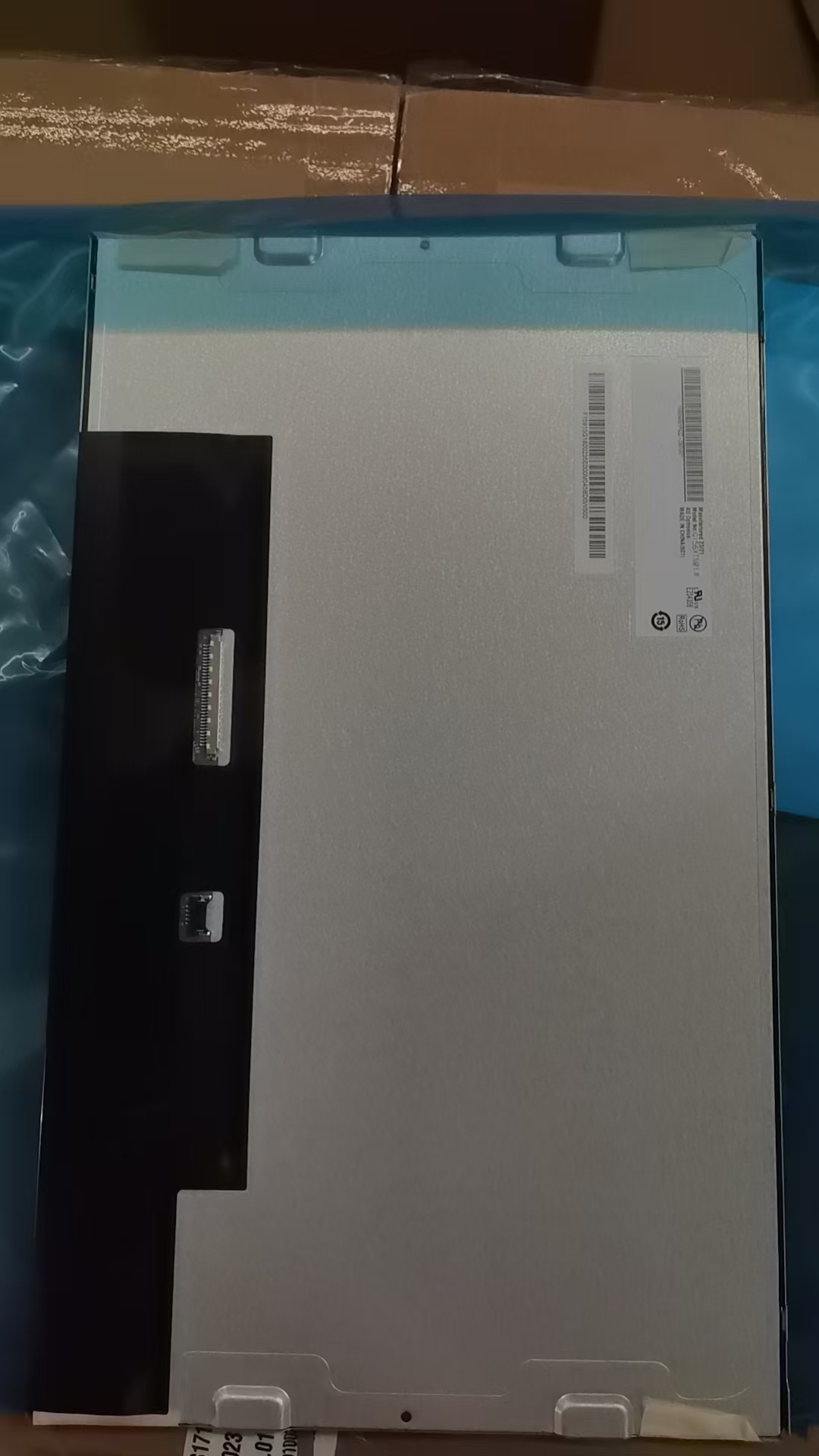

G320ZAN02.2 Lcd Screen AUO 32inch UHD 3840x2160 850 nits 0~50°C 30K DCIP3 98% & Adobe 99% eDP 10bit 1800:1

$0

G320ZAN02.2 Lcd Screen AUO 32inch UHD 3840x2160 850 nits 0~50C 30K DCIP3 98% & A

Product Description

G320ZAN02.2 Lcd Screen AUO 32inch UHD 3840x2160 850 nits 0~50°C 30K DCIP3 98% & Adobe 99% eDP 10bit 1800:1


  • Brand
  • AUO
  • Model P/N
  • G320ZAN02.2
  • Diagonal Size
  • 32.0"
  • Panel Type
  • a-Si TFT-LCD, LCM
  • Resolution
  • 3840(RGB)×2160, UHD  137PPI
  • Pixel Format
  • RGB Vertical Stripe
  • Active Area
  • 708.48(W)×398.52(H) mm
  • Bezel Opening
  • 714.48(W)×404.52(H) mm
  • Outline Size
  • 727.3(W)×424.5(H) ×20.98(D) mm
  • Surface
  • Antiglare
  • Brightness
  • 850 cd/m² (Typ.)
  • Contrast Ratio
  • 1800:1 (Typ.) (TM)
  • Viewing Angle
  • 89/89/89/89 (Typ.)(CR≥10)
  • Display Mode
  • AHVA, Normally Black, Transmissive
  • Best View on
  • Symmetry
  • Response Time
  • 10/10 (Typ.)(Tr/Td)
  • Display Colors
  • 1.07B   98% DCI-P3
  • Lamp Type
  • WLED , 30K hours , With LED Driver
  • Frequency
  • 60Hz
  • Touch Screen
  • Without
  • Panel Weight
  • 4.63Kgs (Typ.)
  • Application
  •
  • Signal Interface
  • eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector
  • Input Voltage
  • 12.0V (Typ.)
  • Environment
  • Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

  • AUO G320ZAN02.2 Mechanical Features

    Panel Size :32.0 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    3840(RGB)×2160, UHDRGB Vertical Stripe0.0615×0.1845 mm0.1845×0.1845 mm  [137PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    708.48×398.52 mm714.48×404.52 mm727.3×424.5 mm20.48±0.5 mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle16:9 (W : H)Landscape type
    Fixation :Rear mounting holes
    Other Features :Panel CoverWeightSurface
    -4.63Kgs (Typ.)Antiglare
    • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
    •  Back to Top

  • AUO G320ZAN02.2 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    850 cd/m² (Typ.)AHVA, Normally Black, Transmissive1800:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    89/89/89/89 (Typ.)(CR≥10)Symmetry10/10 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6045K1.07B (10-bit)X:0.322; Y:0.324
    1931 Color Gamut :NTSC RatiosRGB CoverageAdobe RGB Coverage
    110%100%100%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    98%82%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Performance :3D TypeOutdoor VisibilityReflectance
    -Sunlight Readable-
