AUO 24'' 1920*1200 LCD Panel G240UAN01.0 Marine Navigation Display 24 Inch LCD Modules

$340

Key attributesTypeTFTDisplay Size24 inchPlace of OriginTaiwan, ChinaSupplier Typ

Product Description

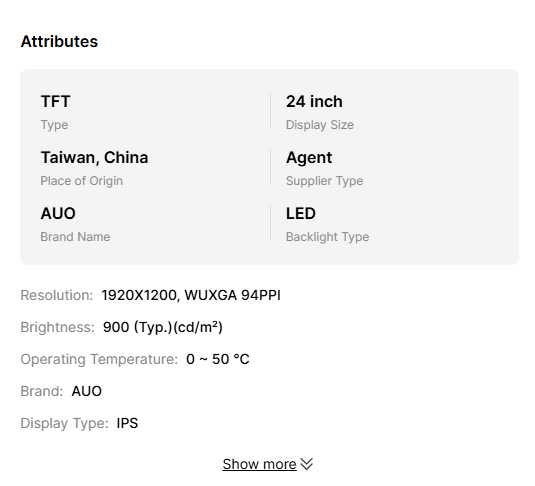

Key attributes

Type
TFT
Display Size
24 inch
Place of Origin
Taiwan, China
Supplier Type
Agent
Brand Name
AUO
Backlight Type
LED
Resolution
1920X1200, WUXGA 94PPI
Brightness
900 (Typ.)(cd/m²)
Operating Temperature
0 ~ 50 °C
Brand
AUO
Display Type
IPS
Mounting Type
Panel Mounting
Screen Size
24.0"
Communication Interface
LVDS (2 ch, 10-bit) , 51 pins Connector
Viewing Angle
89/89/89/89
Contast ratio
1000:1
Backlight
WLED , 50Khours , with LED driver
Display Mode:
AHVA, Normally Black, Transmissive
Color Depth
1.07B 78% NTSC
Response
14 (Typ.)(Tr+Td) ms
Total Consumption
45.13W (Typ.)
Weight
2.6Kgs (Typ.)

Packaging and delivery

Selling Units
Single item
Single package size
60X40X8 cm
Single gross weight
2.600 kg

Product Paramenters

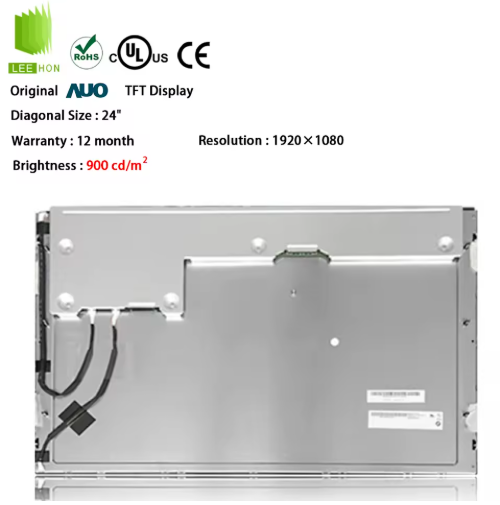

Details Images


G240UAN01.0        24 inch LCD Basic detail
LCD Modules Brand
AUO
Model
G240UAN01.0
Power consumption
45.13W (Typ.)
Aspect Ratio
16:10
Resolution
1920(RGB)×1200, WUXGA 94PPI
Backlight
WLED , 50K hours , With LED Driver
Interface
LVDS (2 ch, 10-bit) , 51 pins Connector
Display Mode
AHVA, Normally Black, Transmissive
Brightness
900 (Typ.)(cd/m²)
Response
14 (Typ.)(Tr+Td) ms
Contrast
1000 : 1
Color Depth
1.07B 78% NTSC
View Angle
89/89/89/89
Weight
2.6KG
Active Area (mm)
518.4(W)×324(H) mm
Work Temp
0 ~ 50 °C

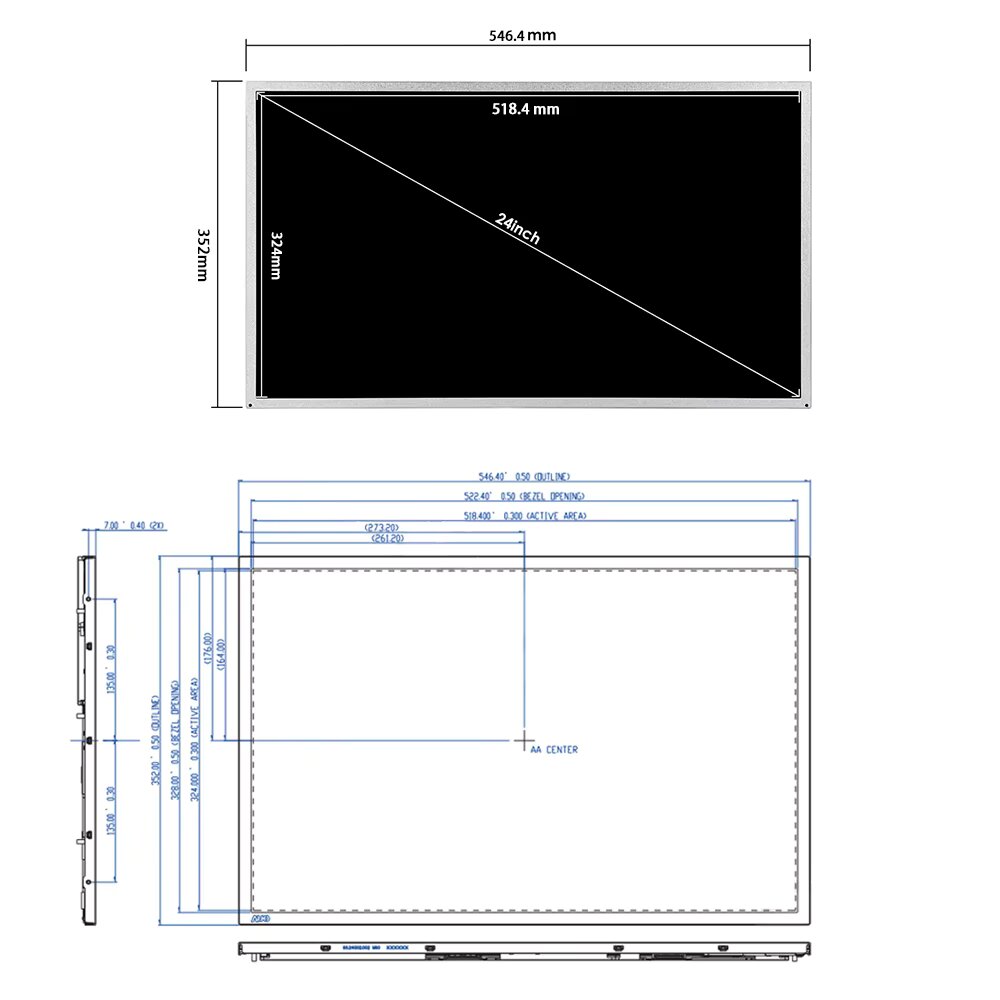

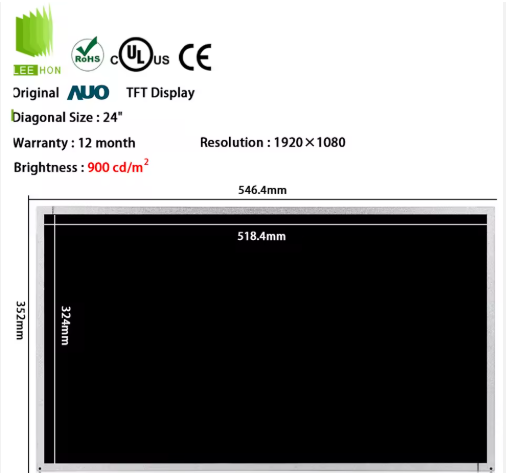

Outline Dimension
546.4×352×18.6mm
Storage Temp
-20 ~ 60 °C


Popular Size


"Need a screen about 24'' LVDS interface LCD that survives your specs, not the other way around?"
→ Get your tailored LCD quote in 24 hours.
Brand
Resolution
Model
Brightness
Contrast
Active Area
Work
Temp
LED Life Time
AUO
1920*1080
G240HW01 V1
300
5000:1
531.36*298.89
-20/70
50K
BOE
1920*1200
EV240WUM-N10
600
1000:1
518.4*324
0/50
50K
AUO
1920*1200
G240UAN01.1
850
1000:1
518.4*324
0/50
50K
AUO
1920*1200
G240UAN01.0
900
1000:1
518.4*324
0/50
50K
