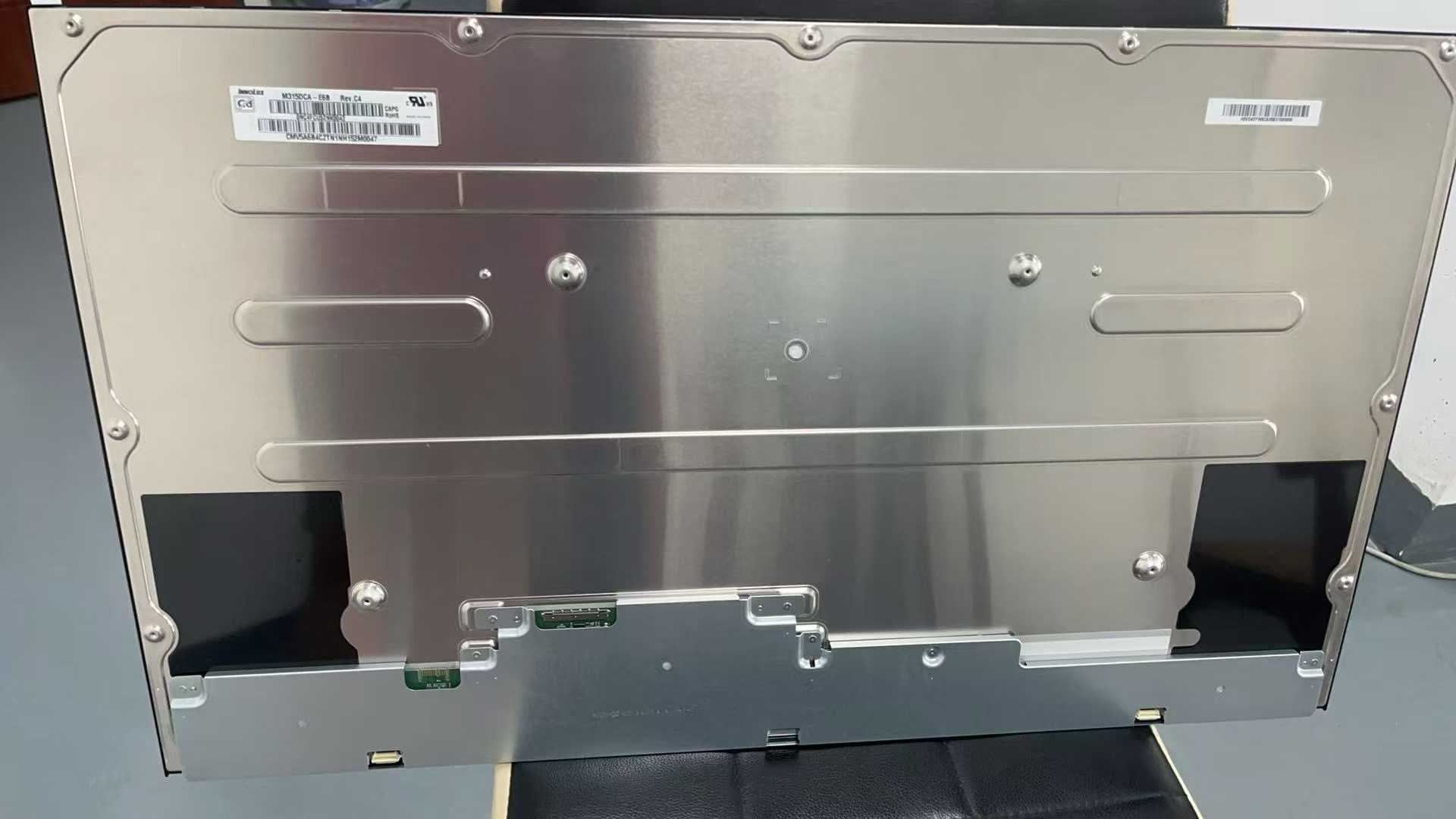

P286IVN01.1 LCD Screen Panel AUO 28.6" Stretched VA LCM 1920×540 700nits WLED LVDS 51pins

P286IVN01.1 LCD Screen Panel AUO 28.6" Stretched VA LCM 1920540 700nits WLE

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	P286IVN01
Model :	P286IVN01.1
Keywords Desc. :	AUO 28.6" Stretched VA LCM 1920×540 700nits WLED LVDS 51pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, High Brightness LCD, Sunlight Readable LCD, Bar LCD
Application :	Digital Signage, Outdoor High Brightness, Stretched Bar LCD
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	28.6"
Resolution :	1920×540
Aspect Ratio :	>3:1 (W:H)
Form Factor :	Flat Rectangle
Active Area :	698.4 (W) × 196.425 (H) mm (A.A)
Outline Dimension :	722.2 (W) × 220.23 (H) mm
Max. Depth :	28.9 mm
LC Family :	VA
Polarizer :	Transmissive
Brightness :	700 (Typ.)
Contrast Ratio :	4000:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	51 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 60 °C
Storage Temp. :	-20 ~ 60 °C
