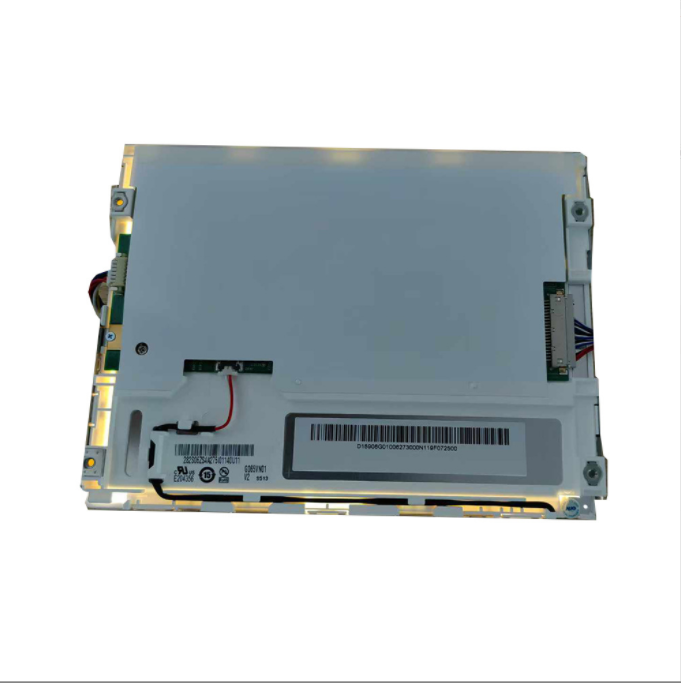

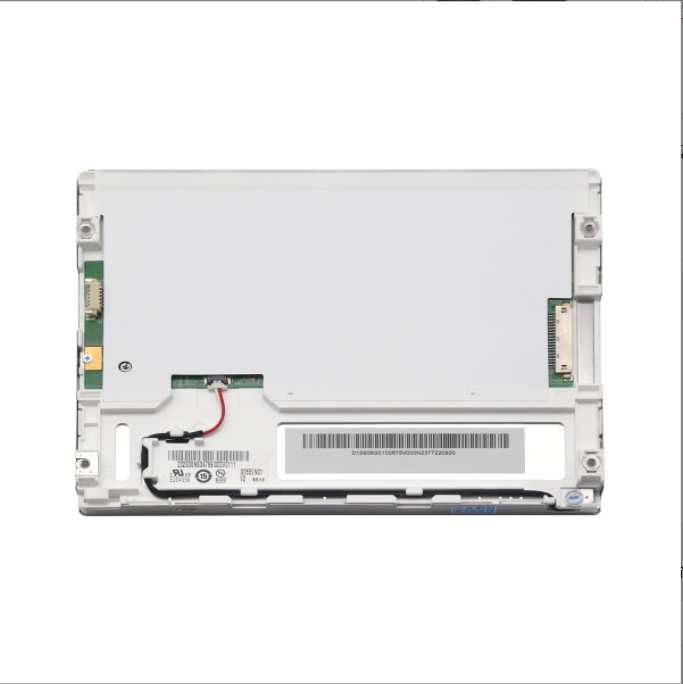

G057QN01 V2 AUO 5.7" TN LCD Panel 320×240 800nits WLED TTL 33pins G057QN01

SpecificationSystem Category :L

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G057QN01
Model :	G057QN01 V2
Keywords Desc. :	AUO 5.7" TN LCM 320×240 800nits WLED TTL 33pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD
Application :	Industrial, Outdoor High Brightness
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	5.7"
Resolution :	320×240
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	115.2 (W) × 86.4 (H) mm (A.A)
Outline Dimension :	144 (W) × 104.6 (H) mm
Max. Depth :	12.8 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	800 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	12 o'clock
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	33 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-30 ~ 85 °C
