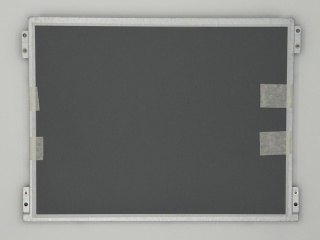

G104VN01 V1 AUO 10.4" TN LCD Panel 640×480 450nits WLED LVDS 20pins Screen

G104VN01 V1 AUO 10.4" TN LCD Panel 640480 450nits WLED LVDS 20pins Screen

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G104VN01
Model :	G104VN01 V1
Keywords Desc. :	AUO 10.4" TN LCM 640×480 450nits WLED LVDS 20pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.4"
Resolution :	640×480
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	211.2 (W) × 158.4 (H) mm (A.A)
Outline Dimension :	243 (W) × 176.6 (H) mm
Max. Depth :	8.5 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	450 (Typ.)
Contrast Ratio :	700:1 (Typ.)
Viewing Angle :	80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	20 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-30 ~ 85 °C
