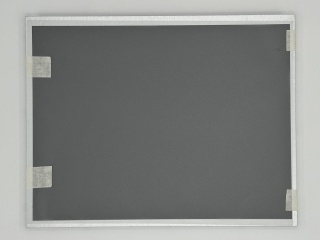

G104SN03 V5 AUO 10.4" TN LCD Panel 800×600 230nits WLED LVDS 20pins Screen

G104SN03 V5 AUO 10.4" TN LCD Panel 800600 230nits WLED LVDS 20pins Screen

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G104SN03
Model :	G104SN03 V5
Keywords Desc. :	AUO 10.4" TN LCM 800×600 230nits WLED LVDS 20pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.4"
Resolution :	800×600
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	211.2 (W) × 158.4 (H) mm (A.A)
Outline Dimension :	236 (W) × 176.9 (H) mm
Max. Depth :	6 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	230 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	80/80/60/70 (Typ.)(CR=10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	20 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-20 ~ 70 °C
