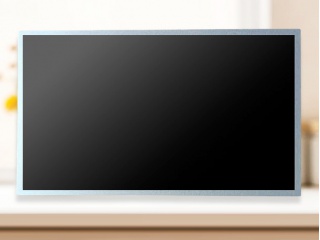

G156XTT01.1 AUO 15.6" TN LCD Panel 1366×768 350nits WLED LVDS 30pins CTP Screen

G156XTT01.1 AUO 15.6" TN LCD Panel 1366768 350nits WLED LVDS 30pins CTP Scr

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G156XTT01
Model :	G156XTT01.1
Keywords Desc. :	AUO 15.6" TN LCM 1366×768 350nits WLED LVDS 30pins CTP
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Capacitive Touch LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	15.6"
Resolution :	1366×768
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	344.232 (W) × 193.536 (H) mm (A.A)
Outline Dimension :	363.8 (W) × 215.9 (H) mm
Max. Depth :	12.5 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	350 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Display Colors :	16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	PCAP, Air Bonding
Operating Temp. :	0 ~ 60 °C
Storage Temp. :	-20 ~ 60 °C
