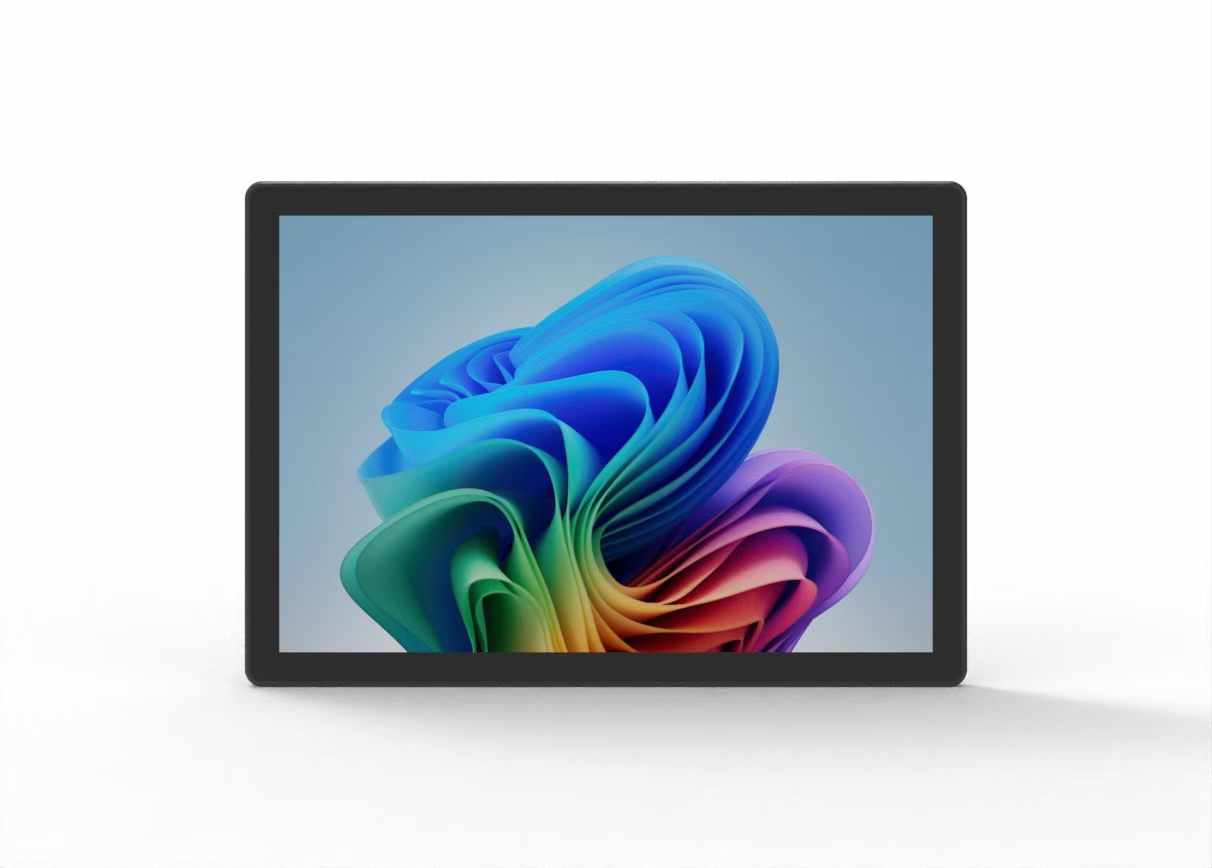

G043FTT01.0 AUO 4.3" TN LCD Panel 480×272 400nits WLED TTL 45pins RTP Screen

G043FTT01.0 AUO 4.3" TN LCD Panel 480272 400nits WLED TTL 45pins RTP Screen

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G043FTT01
Model :	G043FTT01.0
Keywords Desc. :	AUO 4.3" TN LCM 480×272 400nits WLED TTL 45pins RTP
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Resistive Touch LCD
Application :	Handheld & PDA, Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	4.3"
Resolution :	480×272
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	95.04 (W) × 53.856 (H) mm (A.A)
Outline Dimension :	105.5 (W) × 67.2 (H) mm
Max. Depth :	4.33 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	400 (Typ.)
Contrast Ratio :	400:1 (Typ.)
Viewing Angle :	65/65/50/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	45 Pins
Touch Panel :	4-wire Resistive Touch
Operating Temp. :	0 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
