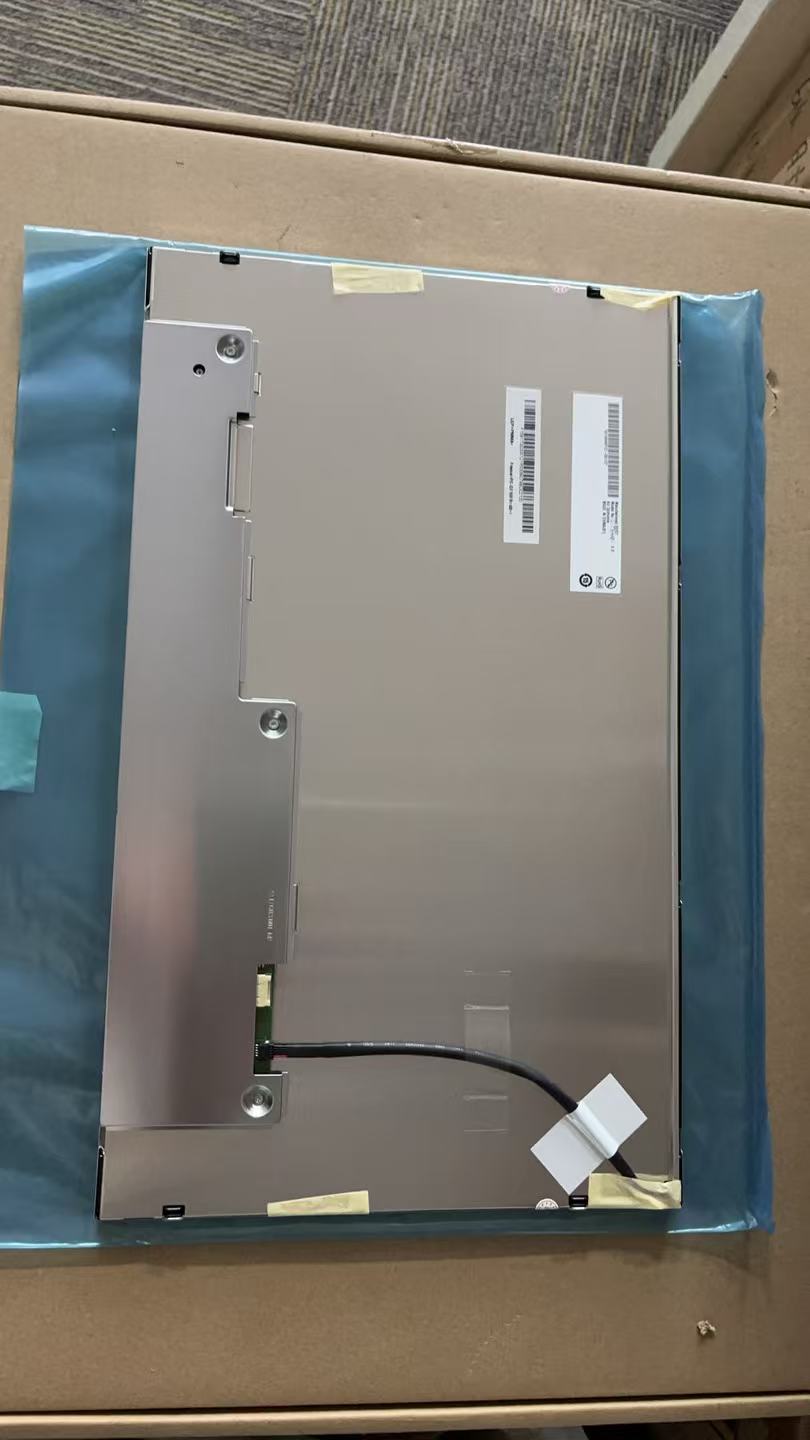

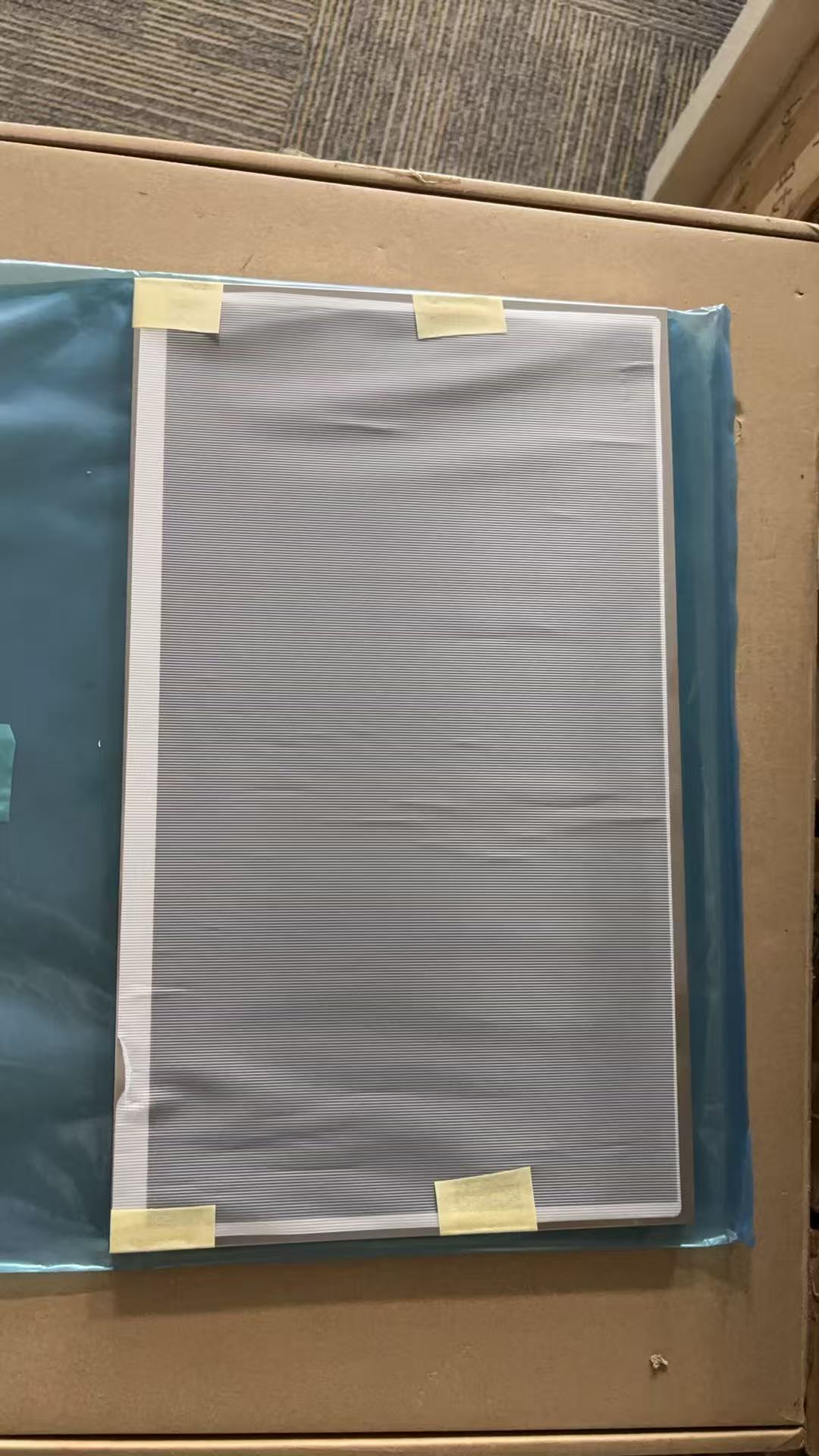

G173HW01 V0 AUO 17.3" TN LCD Panel 1920×1080 400nits WLED LVDS Screen

G173HW01 V0 AUO 17.3" TN LCD Panel 19201080 400nits WLED LVDS Screen

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G173HW01
Model :	G173HW01 V0
Keywords Desc. :	AUO 17.3" TN LCM 1920×1080 400nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	17.3"
Resolution :	1920×1080
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	381.888 (W) × 214.812 (H) mm (A.A)
Outline Dimension :	403 (W) × 240 (H) mm
Max. Depth :	13 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	400 (Typ.)
Contrast Ratio :	600:1 (Typ.)
Viewing Angle :	80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	0 ~ 70 °C
Storage Temp. :	-20 ~ 70 °C
