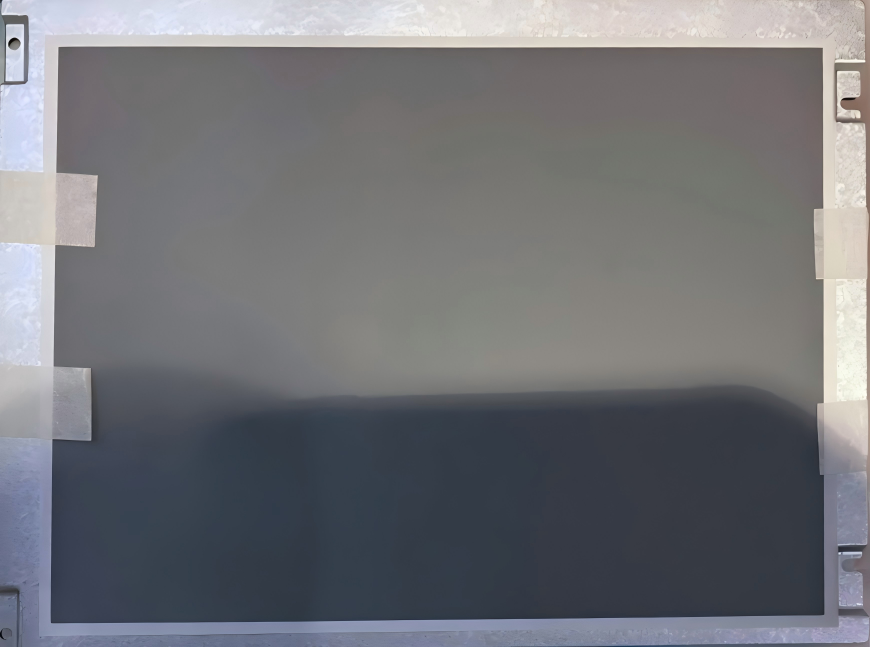

G065VN01 V221 AUO 6.5" IPS LCD panel 640×480 800nits WLED LVDS 20pins G065VN01 V2

G065VN01 V221 AUO 6.5" IPS LCD panel 640480 800nits WLED LVDS 20pins G065VN

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	G065VN01
Model :	G065VN01 V221
Keywords Desc. :	AUO 6.5" IPS LCM 640×480 800nits WLED LVDS 20pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD
Application :	Industrial, Outdoor High Brightness
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	6.5"
Resolution :	640×480
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	132.48 (W) × 99.36 (H) mm (A.A)
Outline Dimension :	153 (W) × 118 (H) mm
Max. Depth :	11.2 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	800 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	20 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 80 °C
Storage Temp. :	-30 ~ 80 °C
