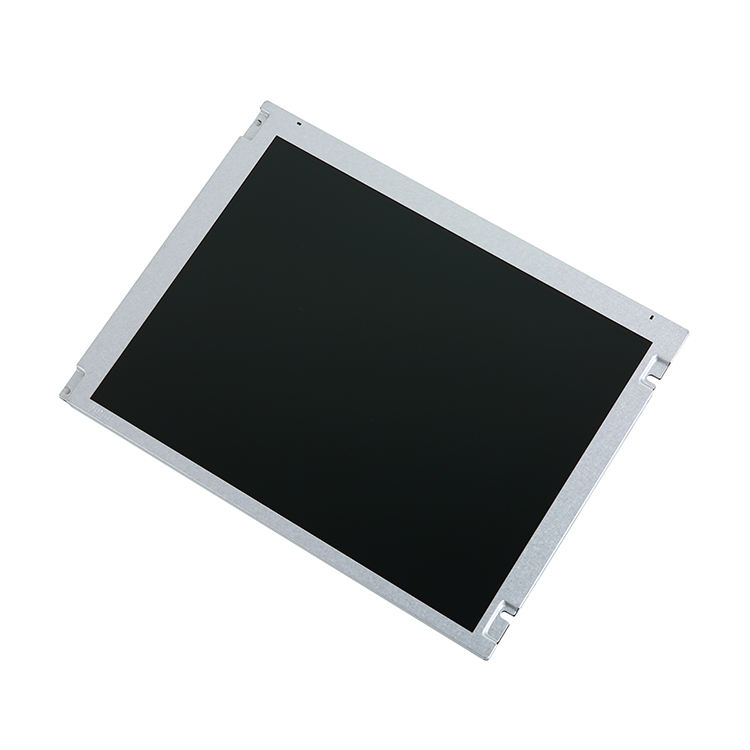

A080STN01.0 AUO 8" TN LCD panel 800×600 250nits WLED TTL 60pins

A080STN01.0 AUO 8" TN LCD panel 800600 250nits WLED TTL 60pinsSpecification

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	AUO
Series :	A080STN01
Model :	A080STN01.0
Keywords Desc. :	AUO 8" TN LCM 800×600 250nits WLED TTL 60pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	8"
Resolution :	800×600
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	162 (W) × 121.5 (H) mm (A.A)
Outline Dimension :	183 (W) × 141 (H) mm
Max. Depth :	5.2 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	250 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	70/70/60/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	16.2M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	60 Pins
Touch Panel :	Without
Operating Temp. :	-10 ~ 60 °C
Storage Temp. :	-30 ~ 70 °C
