4.3 '' 480x272 WQVGA Portable Industrial Detection Instruments LCD Screen Panel 4.3 Inch TFT LCD Module

$13.5

Key attributesTypeTNDisplay Size4.3 inchPlace of OriginTaiwan, ChinaSupplier Typ

Product Description

Key attributes

Type

Display Size

4.3 inch

Place of Origin

Taiwan, China

Supplier Type

Original Factory Agent

Brand Name

AUO

Size

4.3 inch

Resolution

480(RGB)*272, WQVGA 128PPI

Viewing Angle

70/70/60/65---80/80/55/65

Brightness

280 / 300 / 550 / 800 cd/m²

Contrast Ratio

350 : 1/ 400:1/ 450:1/ 500:1

Electrical interface

Parallel RGB (1 ch, 8-bit) , FPC , 40 pins

Backlight

WLED , 20K hours -30K hours -100K hours

Operating Temperature

-20 ~ +70 (°C) -30 ~ 80 °C

Response time

10/15/20/25ms

Display mode

TN , Normally White , Transmissive

Packaging and delivery

Selling Units

Single item

Single package size

12.0X8.0X2.0 cm

Single gross weight

0.200 kg

Lead time

Quantity (pieces)	1 - 1000	> 1000
Lead time (days)	35	To be negotiated

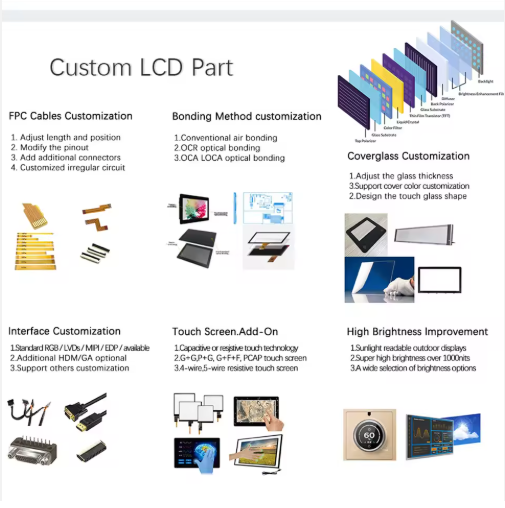

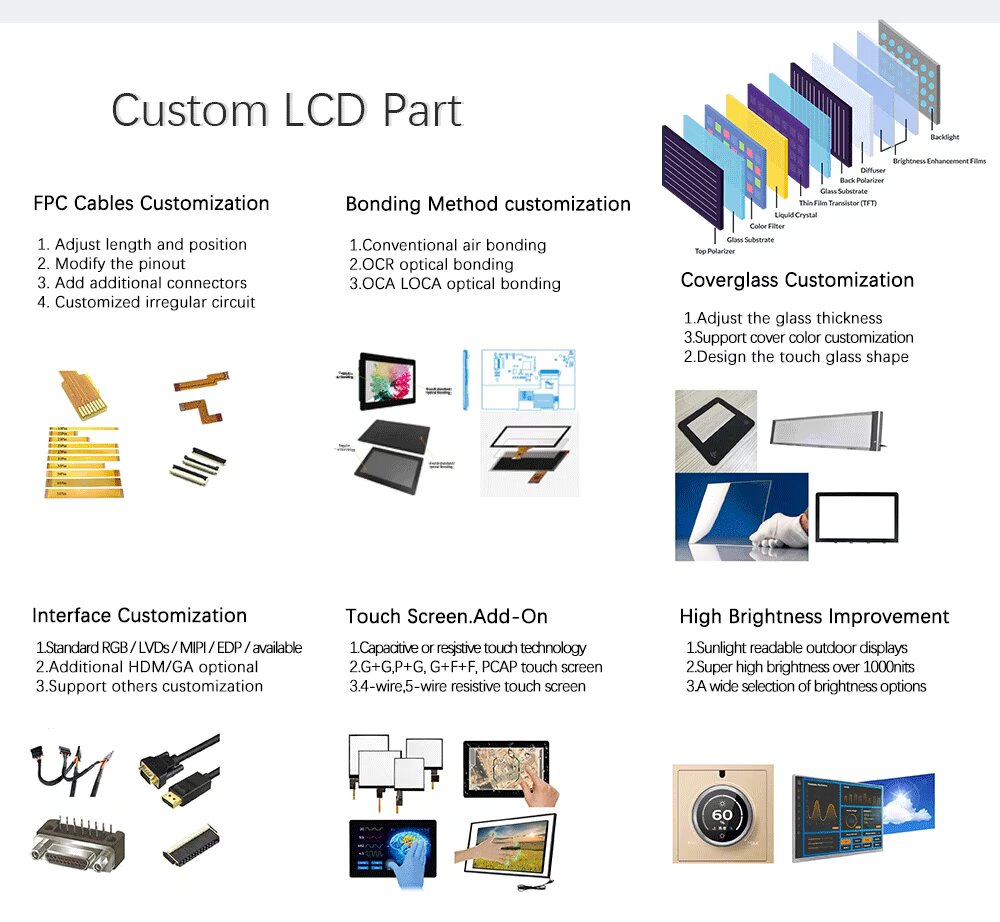

Customization options

touchscreen+$20/piece (Min. order: 50 pieces)

Customized packaging+$0/piece (Min. order: 300 pieces)

controller board+$30/piece (Min. order: 30 pieces)

View details

Ratings & Reviews

5.0

Very satisfied

Based on 269 reviews forverified purchases

Supplier service5.0

On-time shipment5.0

Product quality5.0

Sort by: Most relevant

Show reviews that mention:

Showing all reviews in your chosen languageShow original

S***y

France

Verified purchase

Dec 20, 2024

I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all

BOE 10.1 Inch Industrial Grade LCD Display 10.1 Inch LCD Module High Brightness IPS TFT LCD PanelSee product details

$24-28

Helpful (0)

S***y

France

Verified purchase

Dec 20, 2024

BOE 10.1 inch TFT LCD Display 1280x800 LCD Panel Screen High Contrast IPS TFT LCD moduleSee product details

$24-114

Helpful (1)

S***y

France

Verified purchase

Dec 20, 2024

AUO 10.1 Inch LCD Screen Panel G101STN01.0 Industrial Terminal Control TFT LCD Display LCD ModuleSee product details

$40-46

Helpful (1)

Product Paramenters

Why choose our industrial grade LCD Module？

Industrial applications have very exacting requirements for temperature, humidity, noise resistance and electromagnetism. The high brightness, high-resolution industrial display panels from AUO Display Plus deliver high quality and reliability. Our products go through high/low temperature, high humidity, and extended operation testing to rigorous standards to ensure continuous and stable operations in all kinds of demanding working environments without compromising display quality and performance. We also offer a full range of industrial touch solutions including glove touch detection for user convenience in a variety of conditions.

Details Images

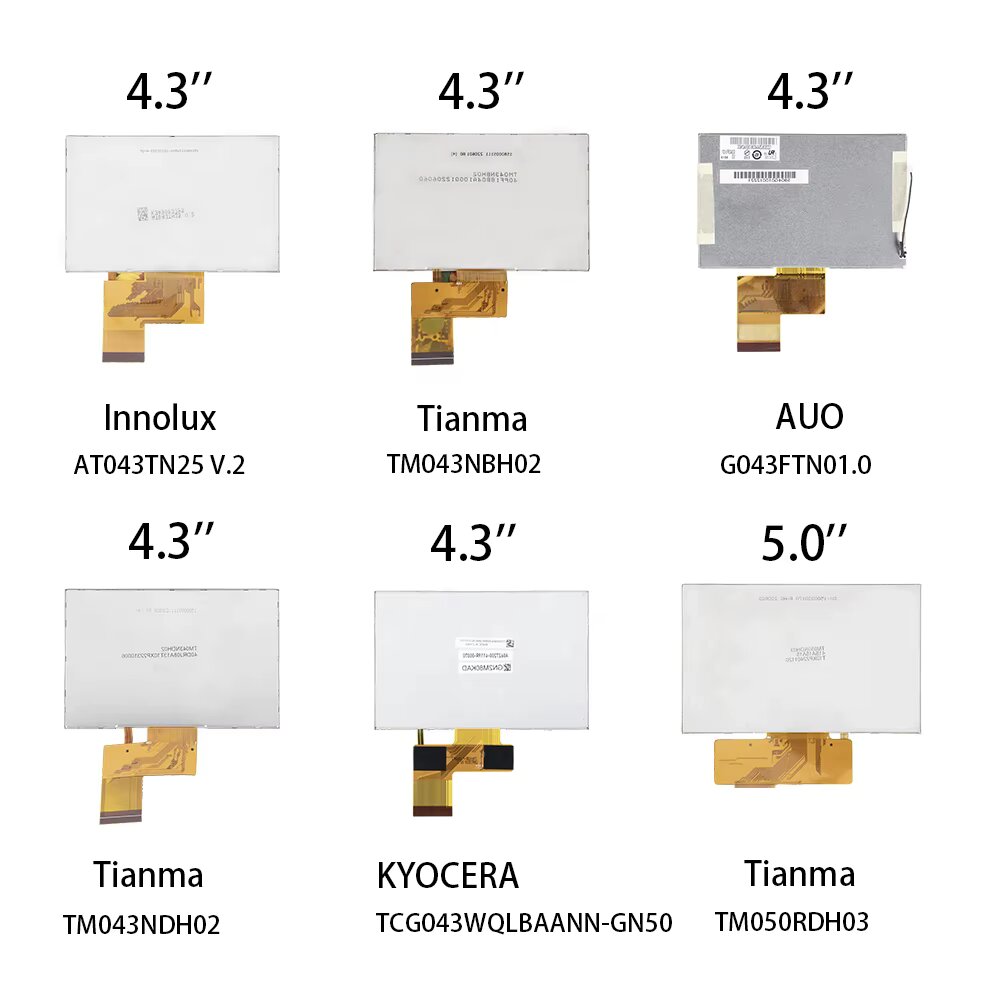

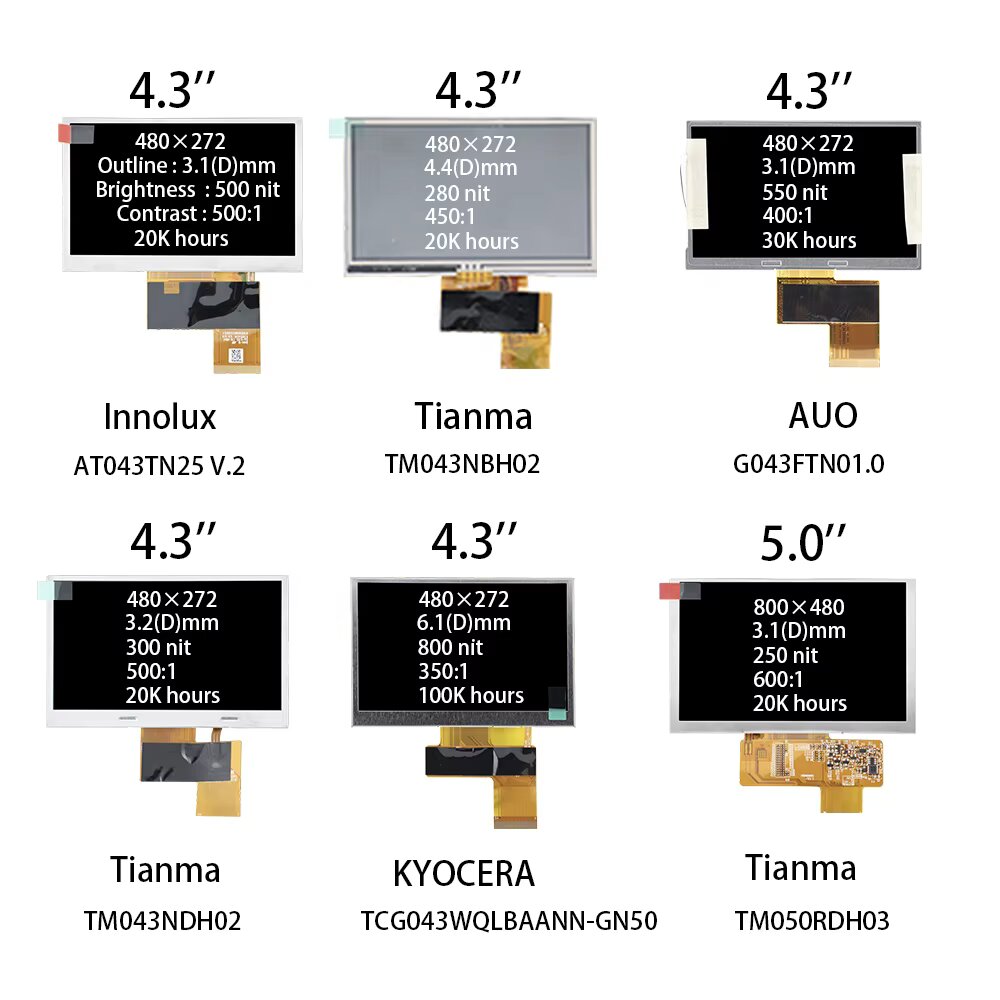

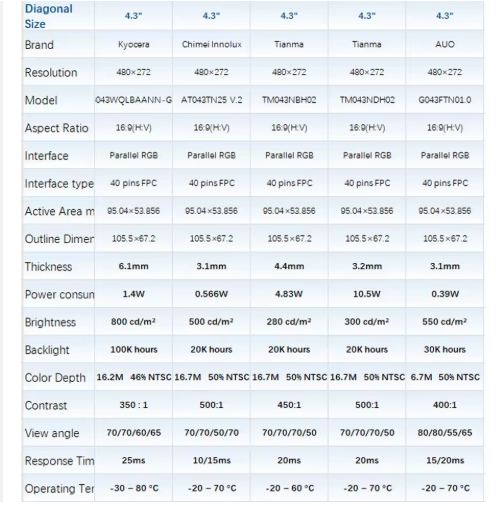

4.3 inch LCD Basic detail

Diagonal Size	4.3"	4.3"	4.3"	4.3"	4.3"
Brand	Kyocera	Chimei Innolux	Tianma	Tianma	AUO
Resolution	480×272	480×272	480×272	480×272	480×272
Model	TCG043WQLBAANN-GN50	AT043TN25 V.2	TM043NBH02	TM043NDH02	G043FTN01.0
Work Mode	TN, Normally White, Transmissive
Aspect Ratio	16:9(H:V)	16:9(H:V)	16:9(H:V)	16:9(H:V)	16:9(H:V)
Interface	Parallel RGB	Parallel RGB	Parallel RGB	Parallel RGB	Parallel RGB
Interface type	40 pins FPC	40 pins FPC	40 pins FPC	40 pins FPC	40 pins FPC
Active Area mm	95.04×53.856	95.04×53.856	95.04×53.856	95.04×53.856	95.04×53.856
Outline Dimension mm	105.5×67.2	105.5×67.2	105.5×67.2	105.5×67.2	105.5×67.2
Thickness	6.1mm	3.1mm	4.4mm	3.2mm	3.1mm
Power consumption	1.4W	0.566W	4.83W	10.5W	0.39W
Brightness	800 cd/m²	500 cd/m²	280 cd/m²	300 cd/m²	550 cd/m²
Backlight	100K hours	20K hours	20K hours	20K hours	30K hours
Color Depth	16.2M 46% NTSC	16.7M 50% NTSC	16.7M 50% NTSC	16.7M 50% NTSC	16.7M 50% NTSC
Contrast	350 : 1	500:1	450:1	500:1	400:1
View angle	70/70/60/65	70/70/50/70	70/70/70/50	70/70/70/50	80/80/55/65
Response Time	25ms	10/15ms	20ms	20ms	15/20ms
Operating Temp	-30 ~ 80 °C	-20 ~ 70 °C	-20 ~ 60 °C	-20 ~ 70 °C	-20 ~ 70 °C

Popular Size

AUO Popular Size

Size	Resolution	Model	Interface	Brightness	Contrast	View Angle	Active Area	Work Temp
4.3"	480×272 WQVGA	G043FTN01.0	TTL	550	400:1	80/80/55/65	95.04×53.856	-20/70
5.7"	320*240(QVGA)	G057QN01 V2	TTL	800	800:1	80/80/70/70	115.2×86.4	-30/85
5.7"	640*480（VGA）	G057VN01 V2	TTL	700	800:1	80/80/70/70	115.2×86.4	-30/80
6.5"	640*480（VGA）	G065VN01 V221	LVDS	800	1000:1	89/89/89/89	132.48(W)×99.36(H) mm	-30/80
7.0"	800×480 WVGA	G070VW01 V002	LVDS	400	750:1	80/80/80/80	152.4×91.44	-30/85
8.4"	800*480（SVGA）	G084SN05 V904	LVDS	450	600:1	80/80/80/60	170.4×127.8	-30/85
10.1"	1024*600 WSVGA	G101STN01.2	LVDS	350	500:1	70/70/60/60	222.72×125.28	-10/60
10.1"	1280*800 WXGA	G101STN01.4	LVDS	350	500:1	70/70/60/60	222.72×125.28	-10/60
10.1"	1024*600 WSVGA	G101STN01.0	LVDS	250	500:1	70/70/60/60	222.72×125.28	-10/60
10.1"	1024*600 WSVGA	G101STN01.C	LVDS	500	500:1	70/70/60/60	222.72×125.28	-30/80
10.1"	1280*800 WXGA	G101EVN01.0	LVDS	400	1300:1	85/85/85/85	216.96×135.6	-20/60
10.1"	1280*800 WXGA	G101EVN01.3	LVDS	500	1300:1	85/85/85/85	216.96×135.6	-30/80
10.1"	1280*800 WXGA	G101EVN03.1	LVDS	1000	1300:1	85/85/85/85	216.96×135.6	-20/70
10.1"	1280*800 WXGA	G101EAN02.1	LVDS	400	800:1	89/89/89/89	216.96×135.6	-20/60
10.1"	1280*800 WXGA	G101EAN02.4	EDP	400	800:1	89/89/89/89	216.96×135.6	-20/60
10.1"	1920*1200 WUXGA	G101UAN01.0	EDP	380	800:1	89/89/89/89	216.81×135.5	-10/60
10.4"	800*480（SVGA）	G104STN01 V0/G104STN01.0	LVDS	400	700:1	80/80/60/70	211.2×158.4	-30/80
10.4"	1024*768 XGA	G104XVN01 V0/G104XVN01.0	LVDS	470	3000:1	89/89/89/89	210.4×157.8	-30/80
11.6"	1920*1080（FHD）	G116HAN01.0	EDP	300	800:1	89/89/89/89	256.32×144.18	0/50
12.1"	800*480（SVGA）	G121SN01 V403	LVDS	500	700:1	80/80/65/75	246×184.5	-30/85
12.1"	1024*768 XGA	G121XN01 V001/G121XN01.001	LVDS	500	700:1	80/80/70/70	245.76×184.32	-30/85
12.1"	1280*800 WXGA	G121EAN01.3	LVDS	1500	1000:1	89/89/89/89	261.12×163.2	-30/85
12.1"	1280*800 WXGA	G121EAN01.4	LVDS	300	1000:1	89/89/89/89	261.12×163.2	-30/85
13.3"	1920*1080（FHD）	G133HAN01.1	LVDS	400	800:1	89/89/89/89	293.472×165.078	-20/70
15.0"	1024*768 XGA	G150XTN06 V0	LVDS	450	800:1	80/80/70/80	304.128×228.096	-30/85
15.0"	1024*768 XGA	G150XTN03 V5/G150XTN03.5	LVDS	350	800:1	80/80/70/80	304.128×228.096	-20/65
15.0"	1024*768 XGA	G150XTN06.A	LVDS	1800	800:1	80/80/70/80	304.128×228.096	-30/70
15.0"	1024*768 XGA	G150XTN06.0	LVDS	450	800:1	80/80/70/80	304.128(W)×228.096(H) mm	-30/85
15.6''	1920*1080（FHD）	G156HAN02.3	LVDS	500	1000:1	89/89/89/89	344.16×193.59	-10/65
15.6''	1920*1080（FHD）	G156HAN04.0	LVDS	1000	1000:1	89/89/89/89	344.16×193.59	-30/85
15.6''	1920*1080（FHD）	G156HAN05.0	EDP	500	1000:1	89/89/89/89	344.16×193.59	-10/60
17''	1280*1024（SXGA）	G170EG01 V1/G170EG01.1	LVDS	350	800:1	80/80/60/80	337.92×270.336	-30/85
18.5''	1920*1080（FHD）	G185HAN01.1	LVDS	500	1000:1	89/89/89/89	408.96×230.04	-20/70
21.5''	1920*1080（FHD）	G215HVN01.3	LVDS	1000	5000:1	89/89/89/89	476.64×268.11	-20/80
23''	1920*1080（FHD）	G230HAN01.1	LVDS	300	1000:1	89/89/89/89	509.184×286.416	0/50
24''	1920*1080（FHD）	G240HW01 V1	LVDS	300	5000:1	89/89/89/89	531.36×298.89	-20/70
