AUO Original 5.7 Inch TFT LCD Display Screen 640(RGB)*480 VGA 141PPI High Brightness Industrial TFT LCD Modules With LED Driver

$50

Key attributesTypeTFTDisplay Size5.7 inchPlace of OriginTaiwan, ChinaSupplier Ty

Product Description

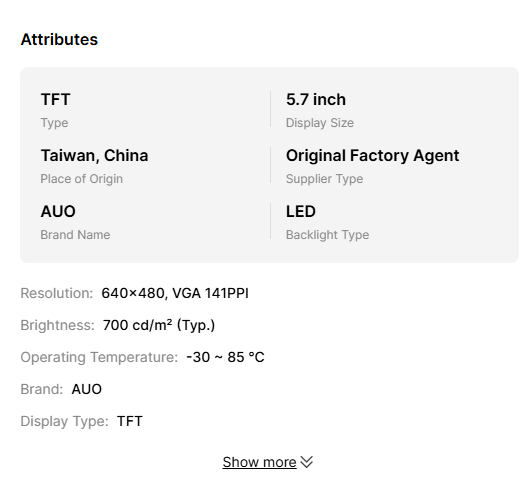

Key attributes

Type

TFT

Display Size

5.7 inch

Place of Origin

Taiwan, China

Supplier Type

Original Factory Agent

Brand Name

AUO

Backlight Type

LED

Resolution

640x480, VGA 141PPI

Brightness

700 cd/m² (Typ.)

Operating Temperature

-30 ~ 85 °C

Brand

AUO

Display Type

TFT

Mounting Type

Panel Mounting

Screen Size

5.7"

Communication Interface

CMOS (1 ch, 6-bit) , 33 pins Connector

View Angle

80/80/70/70(Typ.)(R/L/U/D)

Contrast ratio

800:1(Typ.)

Backlight

WLED , 50k hours, with LED driver

Display mode

TN , Normally white

Support Color

262K 50% NTSC

Response Time

15/10 (Typ.)(Tr/Td)

Power Consumption

2.35W

Packaging and delivery

Selling Units

Single item

Single package size

20X15X6 cm

Single gross weight

0.365 kg

Lead time

Quantity (pieces)	1 - 100	> 100
Lead time (days)	7	To be negotiated

Customization options

driver board+$30/piece (Min. order: 60 pieces)

touchscreen+$20/piece (Min. order: 60 pieces)

Customized packaging+$0/piece (Min. order: 200 pieces)

View details

Ratings & Reviews

5.0

Very satisfied

Based on 269 reviews forverified purchases

Supplier service5.0

On-time shipment5.0

Product quality5.0

Sort by: Most relevant

Show reviews that mention:

Showing all reviews in your chosen languageShow original

S***y

France

Verified purchase

Dec 20, 2024

I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all

BOE 10.1 Inch Industrial Grade LCD Display 10.1 Inch LCD Module High Brightness IPS TFT LCD PanelSee product details

$24-28

Helpful (0)

S***y

France

Verified purchase

Dec 20, 2024

BOE 10.1 inch TFT LCD Display 1280x800 LCD Panel Screen High Contrast IPS TFT LCD moduleSee product details

$24-114

Helpful (1)

S***y

France

Verified purchase

Dec 20, 2024

AUO 10.1 Inch LCD Screen Panel G101STN01.0 Industrial Terminal Control TFT LCD Display LCD ModuleSee product details

$40-46

Helpful (1)

Product Paramenters

Details Images

G057VN01 V2 5.7 inch LCD Basic detail

LCD Modules Brand	AUO	Model	G057VN01 V2
Power consumption	2.35W	Aspect Ratio	4:3 (H:V)
Resolution	640(RGB)×480, VGA 141PPI	Backlight	WLED , 50K hours , With LED Driver
Interface	* CMOS (1 ch, 6-bit) , 33 pins Connector	Display Mode	TN, Normally White, Transmissive
Brightness	700 cd/m² (Typ.)	Response	15/10ms
Contrast	800:1 (Typ.)	Color Depth	262K 50% NTSC
View Angle	80/80/70/70	Weight	0.2KG

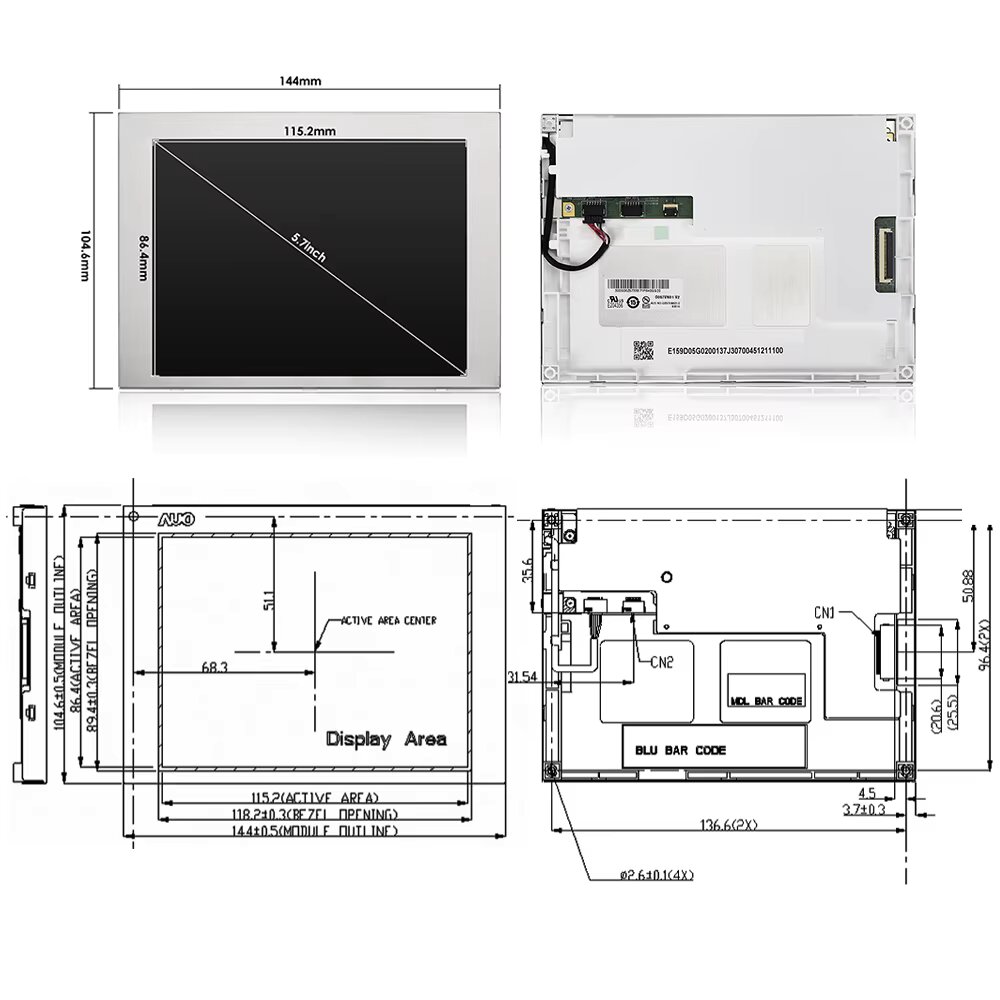

Active Area (mm)	115.2(W)×86.4(H) mm	Work Temp	-30 ~ 85 °C
Outline Dimension	144(W)×104.6(H)×12.8(D) mm	Storage Temp	-30 ~ 85 °C

Popular Size

"Need a screen about 5.7 Inch LCD that survives your specs, not the other way around?"

→ Get your tailored LCD quote in 24 hours.

Brand	Resolution	Model	Interface	Brightness	Contrast	View Angle	Work Temp	LED Life Time
KYOCERA	640*480	TCG057VGLCCANN-GN00	RGB	250	500:1	80/80/80/80	-20/70	40K
KYOCERA	320*240	TCG057QVLCSANN-GN00	RGB	300	500:1	80/80/80/80	-20/70	40K
Tianma	320*240	TM057KDH01-10	RGB	400	500:1	70/70/60/70	-20/70	50K
Tianma	640*480	TM057QDH01-41	RGB	400	500:1	70/70/70/60	-20/70	50K
AUO	320*240	G057QN01 V2	CMOS	800	800:1	80/80/70/70	-30/85	50K
IVO	640*480	M057GWV3 R0	RGB	500	1000:1	85/85/85/85	-20/70	50K
AUO	640*480	G057VN01 V2	CMOS	700	800:1	80/80/70/70	-30/85	50K
AUO	320*240	G057QAN01.1	RGB	800	1000:1	89/89/89/89	-30/85	50K
