10.4 Inch Touch Screen USB / I2C Interface 1024*768

$0

Key attributesModel NumberLH10492AApplicationIndustrial LCD, Medical LCDInterfac

Product Description

Key attributes




Model Number
LH10492A
Application
Industrial LCD, Medical LCD
Interface
USB / I2C
Type
Capacitive
Length
224mm
Diagonal Screen Size
10.4 inch
Width
174.4 mm
Drive IC
ILI2511
Mounting Type
Panel Mounting
Screen Size
10.4 Inch
Communication Interface
I2C/USB
Touch Points
Support 10 Points Touch

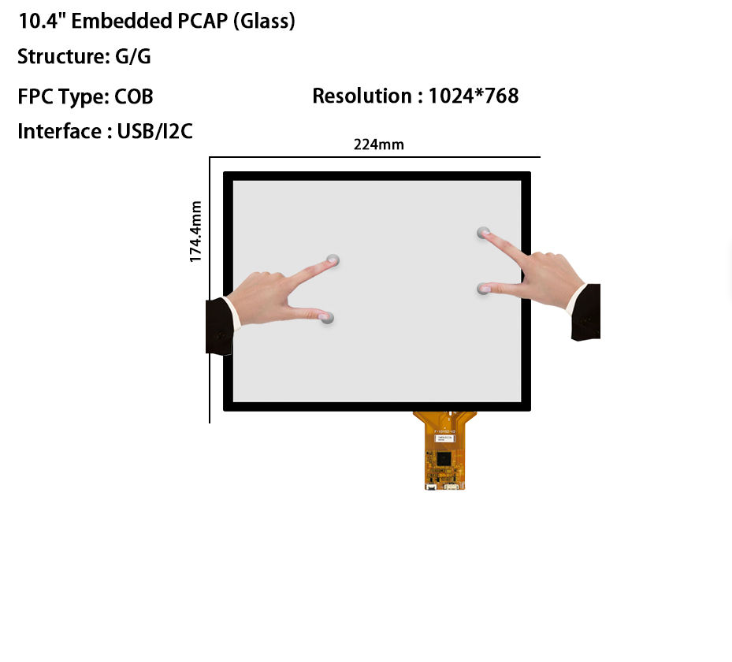

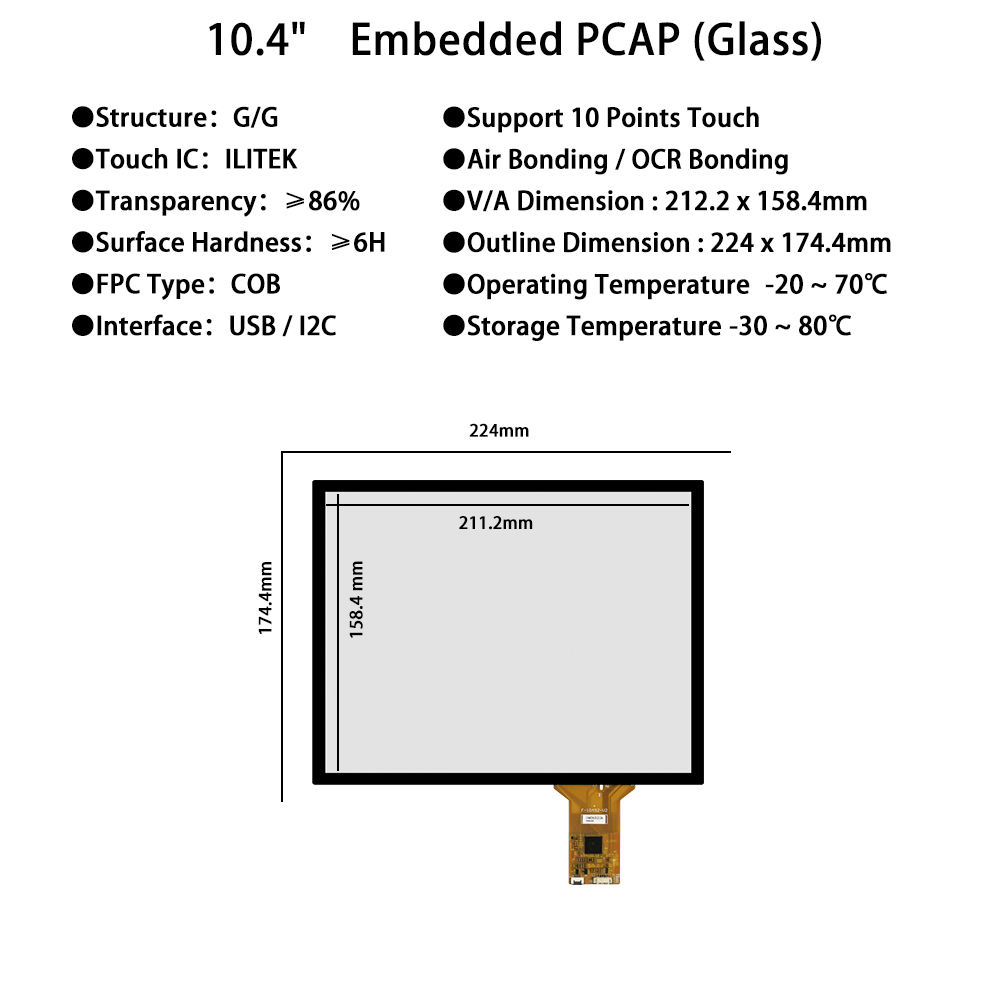

V/A Dimension (HxV)
212.2*159.4 mm

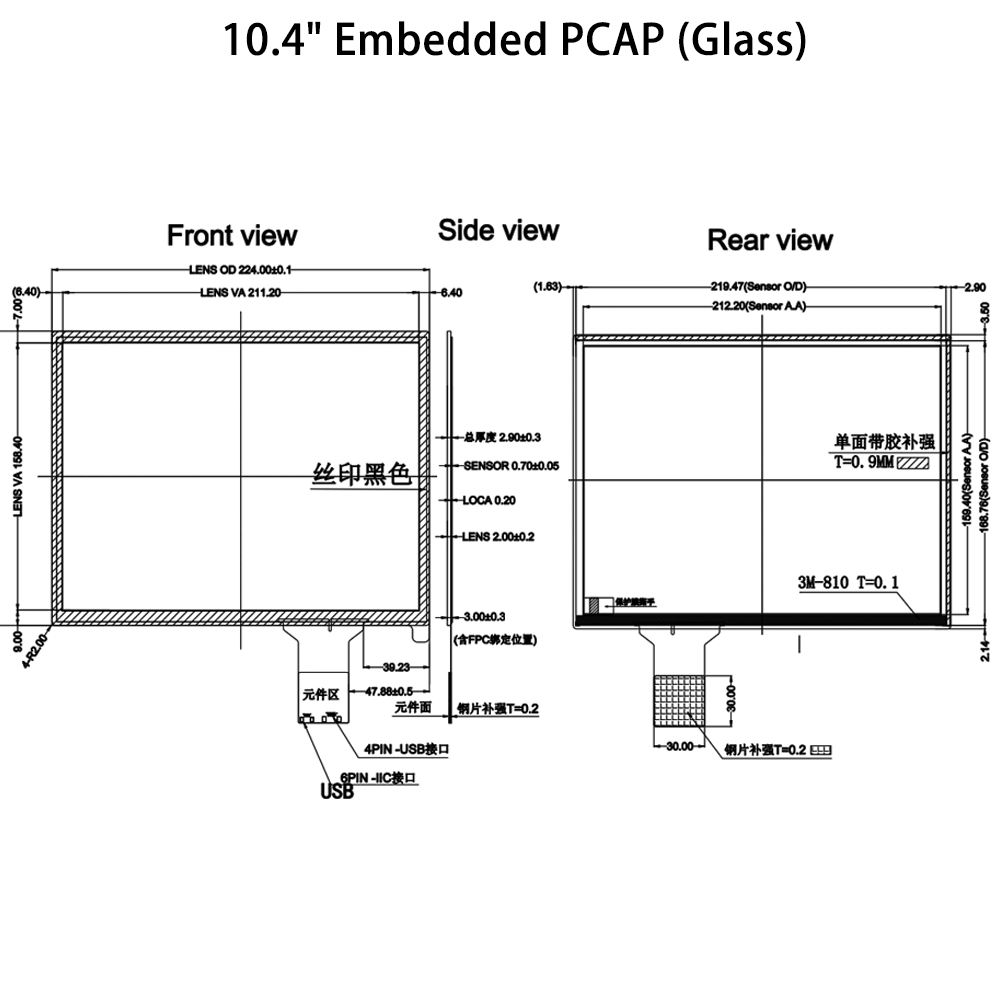

Outline Dimension
224 * 174.4 mm * 2.9 mm
Structure
G/G
Surface Hardness
≥6H
Transparency
≥85%
FPC Type
COB
Operating Temp
-20 ~ 70℃
Touch Points
10 Points
Optional Bonding Service
Air Bonding / OCR Bonding

Packaging and delivery

Selling Units
Single item
Single package size
35X30X10 cm
Single gross weight
0.600 kg
