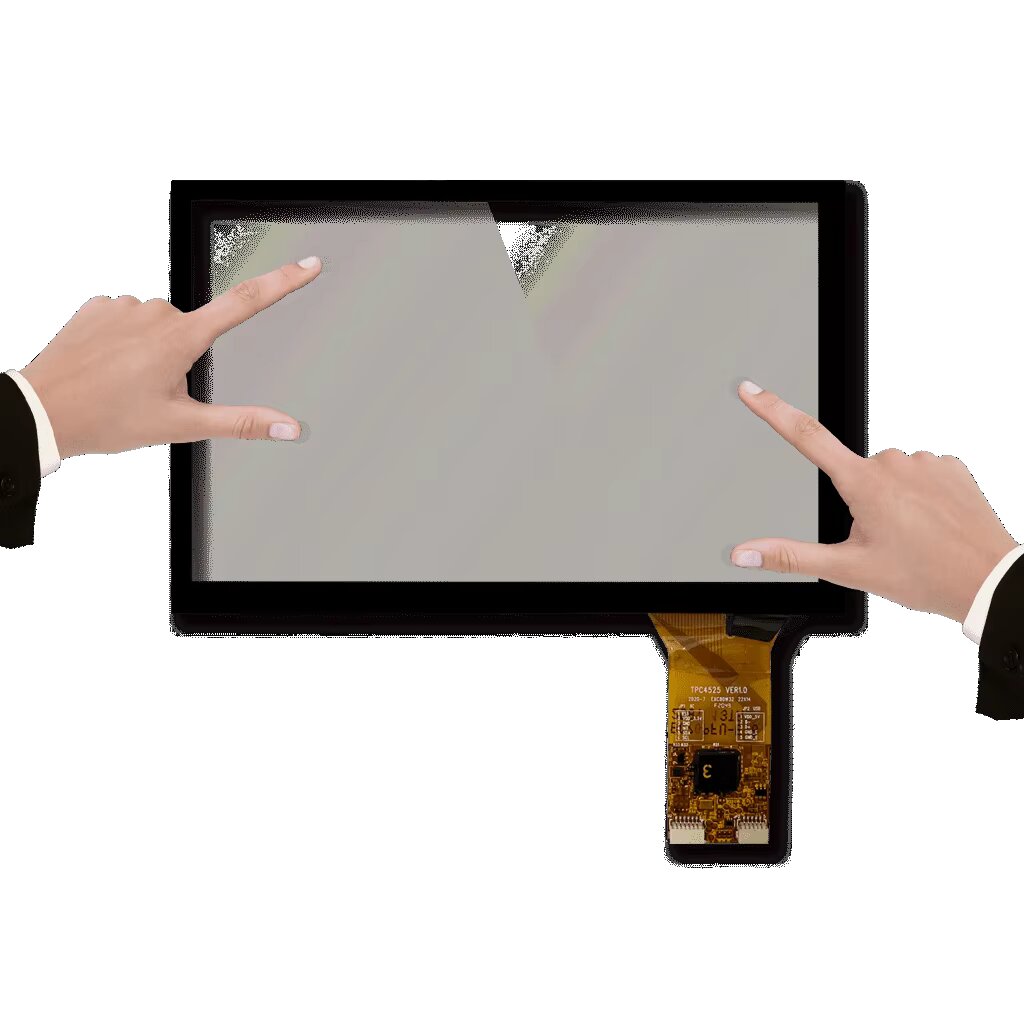

7 Inch 800*480 LCD USB / I2C Interface PCAP Touch Screen Without Touch Control Board

$20

Key attributesPlace of OriginZhejiang, ChinaBrand NameLEEHONModel NumberLX-CGG29

Product Description

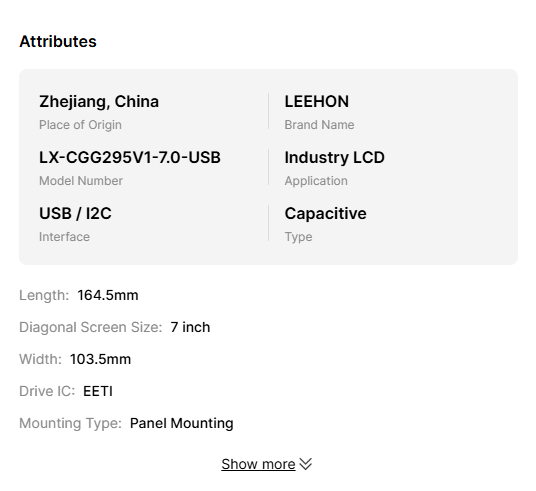

Key attributes

Place of Origin

Zhejiang, China

Brand Name

LEEHON

Model Number

LX-CGG295V1-7.0-USB

Application

Industry LCD

Interface

USB / I2C

Type

Capacitive

Length

164.5mm

Diagonal Screen Size

7 inch

Width

103.5mm

Drive IC

EETI

Mounting Type

Panel Mounting

Screen Size

15 Inch

Communication Interface

I2C/USB

Touch Points

Support 10 Points Touch

Surface Hardness

>=6H

Operating Temp

-10 ~ 60℃

Touch Points

10 Points

Structure

G/G

Transparency

>=85%

FPC Type

COF

Optional Bonding Service

Air Bonding / OCR Bonding

Driver IC

ILI2511

Cover Glass

0.7mm

Packaging and delivery

Selling Units

Single item

Single package size

20X15X5 cm

Single gross weight

0.300 kg

Show reviews that mention:

Showing all reviews in your chosen languageShow original

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

Product Paramenters

Details Images

Product name	7" PCAP Touch (Glass)
Outline Dimension of Glass	164.55mm x 104.71mm
Active area	153mm x 92.04mm
Cover glass thickness	0.7mm
Structure	G/G
Transparency	≧85%
Surface Hardness	≧6H
FPC Type	COF
Driver IC	ILI2511
Interface	USB / I2C
Allow Touch Points	10 Points
Operating Temperature	-10 ~ 60℃
Storage Temperature	-20 ~ 70℃
