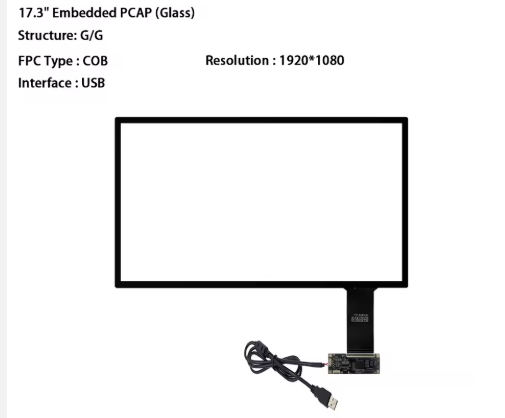

17.3 Inch Touch Screen CTP USB Interface K1056173 Industrial Embedded PCAP Capacitive

$0

Key attributesPlace of OriginZhejiang, ChinaBrand NameLEEHONModel NumberK1056173

Product Description

Key attributes

Place of Origin
Zhejiang, China


Model Number
K1056173
Application
Industrial LCD, Medical LCD
Interface
USB
Type
Capacitive
Length
397.5mm
Diagonal Screen Size
17.3 inch
Width
232.2 mm
Drive IC
ILI2511
Mounting Type
Panel Mounting
Screen Size
17 Inch
Communication Interface
USB / I2C / RS232
Touch Points
Support 10 Points Touch

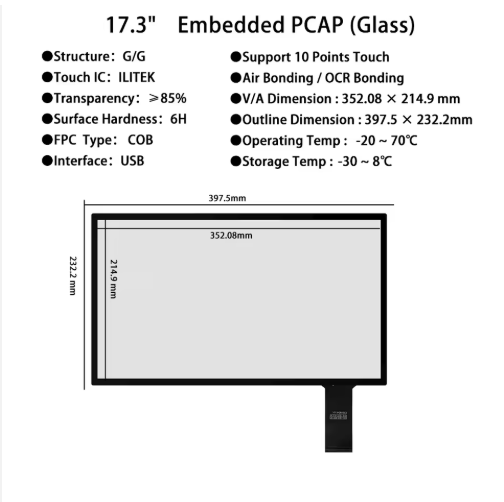

V/A Dimension (HxV)
382.08x214.92mm

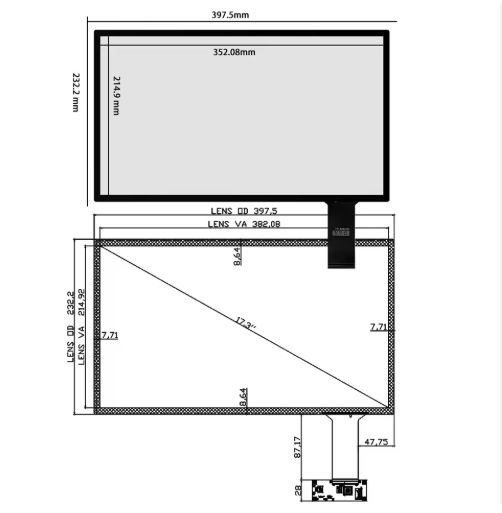

Outline Dimension
397.5x232.2x2.7 mm
Structure
G/G
Surface Hardness
≥6H
Transparency
≥85%
FPC Type
COB
Operating Temp
-20 ~ 70℃
Touch Points
10 Points
Optional Bonding Service
Air Bonding / OCR Bonding

Packaging and delivery

Selling Units
Single item
Single package size
45X40X10 cm
Single gross weight
1.500 kg
