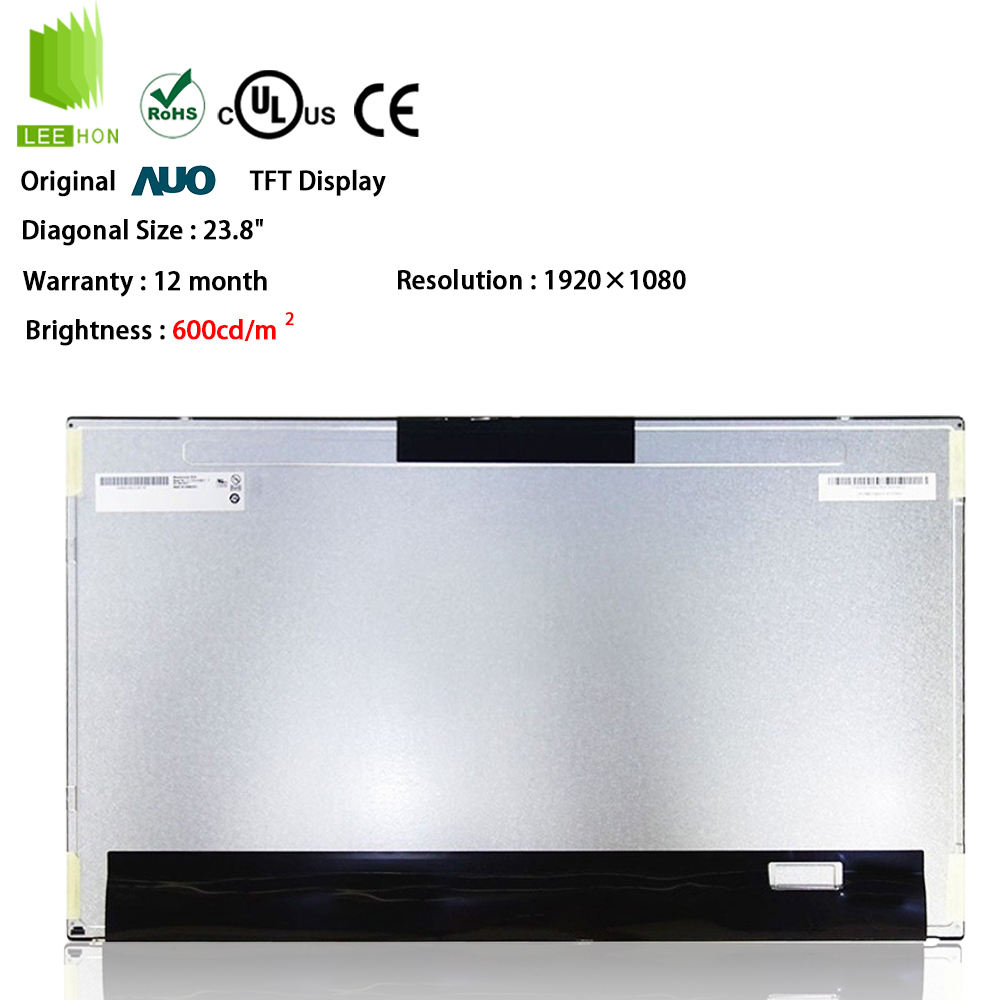

AUO 23.8" 1920X1080 FHD LCD Panel G238HAN01.3 Indoor High Brightness Display 23.8 Inch LCD Modules

$171

Key attributesTypeTFTDisplay Size23.8 inchPlace of OriginTaiwan, ChinaSupplier T

Product Description

Key attributes

Type

TFT

Display Size

23.8 inch

Place of Origin

Taiwan, China

Supplier Type

Agent

Brand Name

AUO

Backlight Type

LED

Resolution

1920X1080, FHD 92PPI

Brightness

600 cd/m² (Typ.)Operating Temperature

0 ~ 50 °C

Brand

AUO

Display Type

IPS

Mounting Type

Panel Mounting

Screen Size

23.8"

Communication Interface

LVDS (2 ch, 8-bit) , Connector 30 pins

Viewing Angle

89/89/89/89

Contrast Ratio

1000:1

Backlight

20S4P WLED , 50K hours , No Driver

Work Mode

AHVA, Normally Black, Transmissive

Response

14 (Typ.)(G to G) ms

Color Depth

16.7M 72% NTSC

Weight

2.4KG

Total Consumption

27.1W (Typ.)

Packaging and delivery

Selling Units

Single item

Single package size

55X36X10 cm

Single gross weight

2.400 kg

Ratings & Reviews

satisfied

Based on 269 reviews forverified purchases

Supplier service5.0

On-time shipment5.0

Product quality5.0

Sort by: Most relevant

Show reviews that mention:

Showing all reviews in your chosen languageShow original

S***y

France

Verified purchase

Dec 20, 2024

I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all

BOE 10.1 Inch Industrial Grade LCD Display 10.1 Inch LCD Module High Brightness IPS TFT LCD PanelSee product details

$24-28

Helpful (0)

S***y

France

Verified purchase

Dec 20, 2024

BOE 10.1 inch TFT LCD Display 1280x800 LCD Panel Screen High Contrast IPS TFT LCD moduleSee product details

$24-114

Helpful (1)

S***y

France

Verified purchase

Dec 20, 2024

AUO 10.1 Inch LCD Screen Panel G101STN01.0 Industrial Terminal Control TFT LCD Display LCD ModuleSee product details

$40-46

Helpful (1)

Lead time

Quantity (pieces)	1 - 100	> 100
Lead time (days)	15	To be negotiated

Customization options

Touch screen (Min. order: 21 pieces)

Customized packaging (Min. order: 200 pieces)

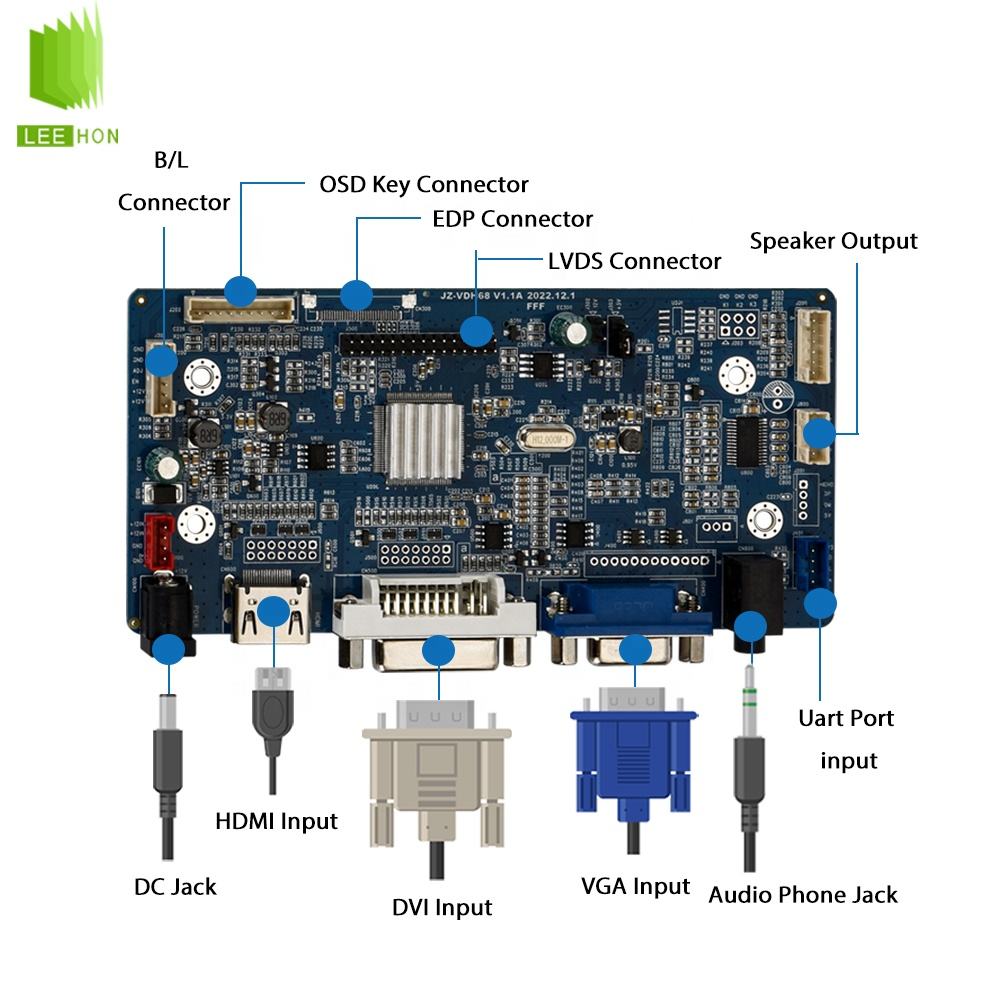

controller board (Min. order: 21 pieces)

View details

Product Paramenters

Details Images

G238HAN01.3 23.8 inch LCD Basic detail

LCD Modules Brand	AUO	Model	G238HAN01.3
Power consumption	27.1W (Typ.)	Aspect Ratio	16:9 (H:V)
Resolution	1920(RGB)×1080, FHD 92PPI	Backlight	20S4P WLED , 50K hours , No Driver
Interface	LVDS (2 ch, 8-bit) , 30 pins Connector	Display Mode	AHVA, Normally Black, Transmissive
Brightness	600 cd/m² (Typ.)	Response	14 (Typ.)(G to G) ms
Contrast	1000 : 1	Color Depth	16.7M 72% NTSC
View Angle	89/89/89/89	Weight	2.4KG

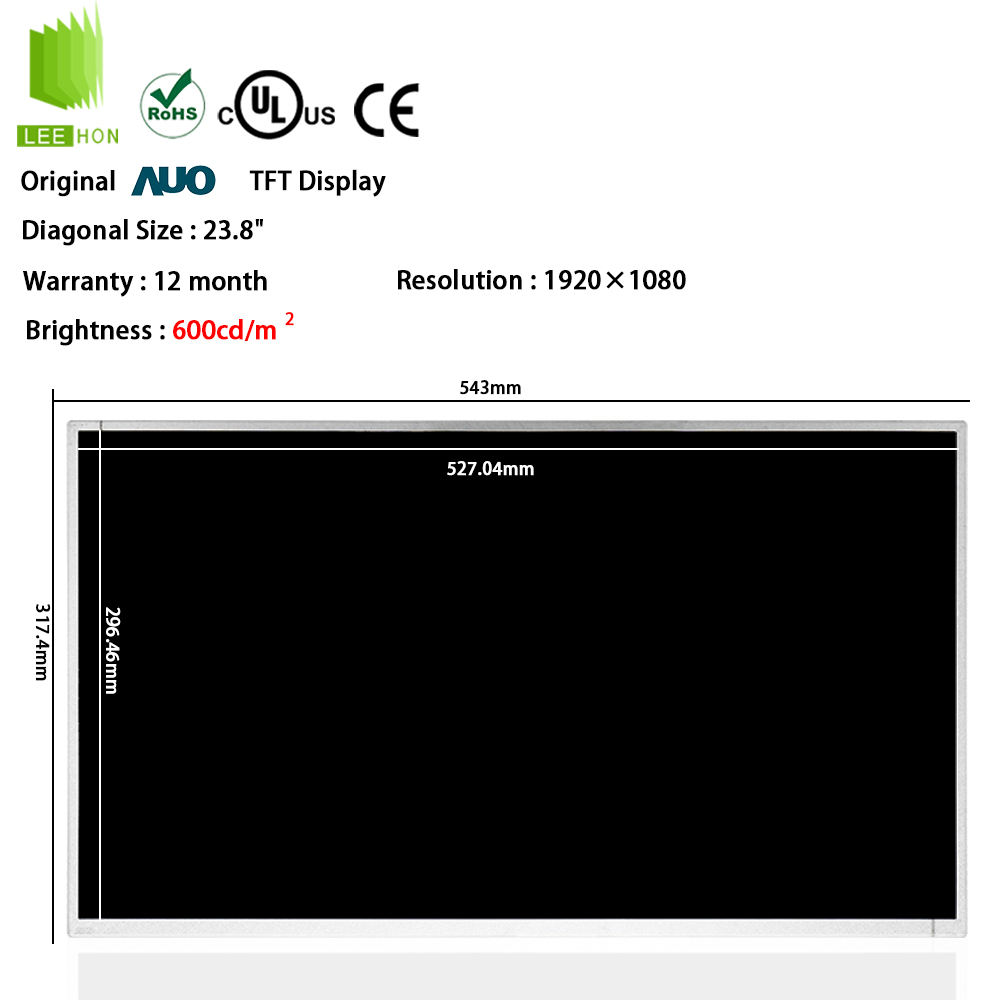

Active Area (mm)	527.04(W)×296.46(H) mm	Work Temp	0 ~ 50 °C
Outline Dimension	543×317.4×11.65mm	Storage Temp	-20 ~ 60 °C

Popular Size

"Need a screen about 23.8'' 1920*1080 resolution LVDS interface LCD that survives your specs, not the other way around?"

→ Get your tailored LCD quote in 24 hours.

AUO	Model	Brightness	Contrast	Active Area	Work Temp	Total Consumption	LED Life Time
BOE	M238HVN01.0	250	3000:1	527.04*296.46	0/50	15.1W	30K
BOE	MV238FHM-N10	250	1000:1	527.04*296.46	0/50	13.35W	30K
AUO	MV238FHM-N20	250	1000:1	527.04*296.46	0/50	12.04W	30K
BOE	P238HVN01.0	250	3000:1	527.04*296.46	0/50	12.17W	30K
AUO	DV238FHM-P20	300	1000:1	527.04*296.46	0/50	13.08W	30K
BOE	G238HAN01.1	400	1000:1	527.04*296.46	0/50	20.7W	50K
AUO	DV238FHM-N11	550	1000:1	527.04*296.46	0/50	26.54W	30K
BOE	G238HAN01.3	600	1000:1	527.04*296.46	0/50	27.1W	50K
AUO	EV238FHM-N21	600	1000:1	527.04*296.46	0/50	32.8W	50K
