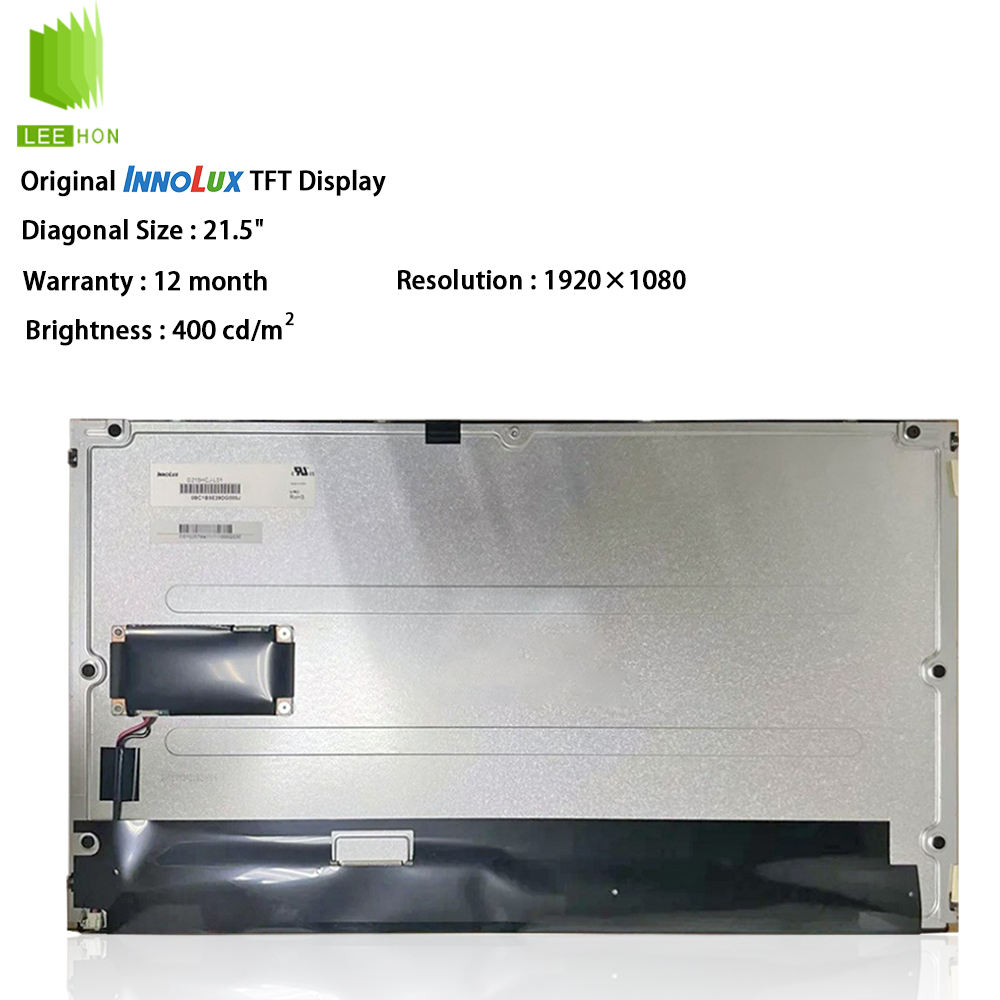

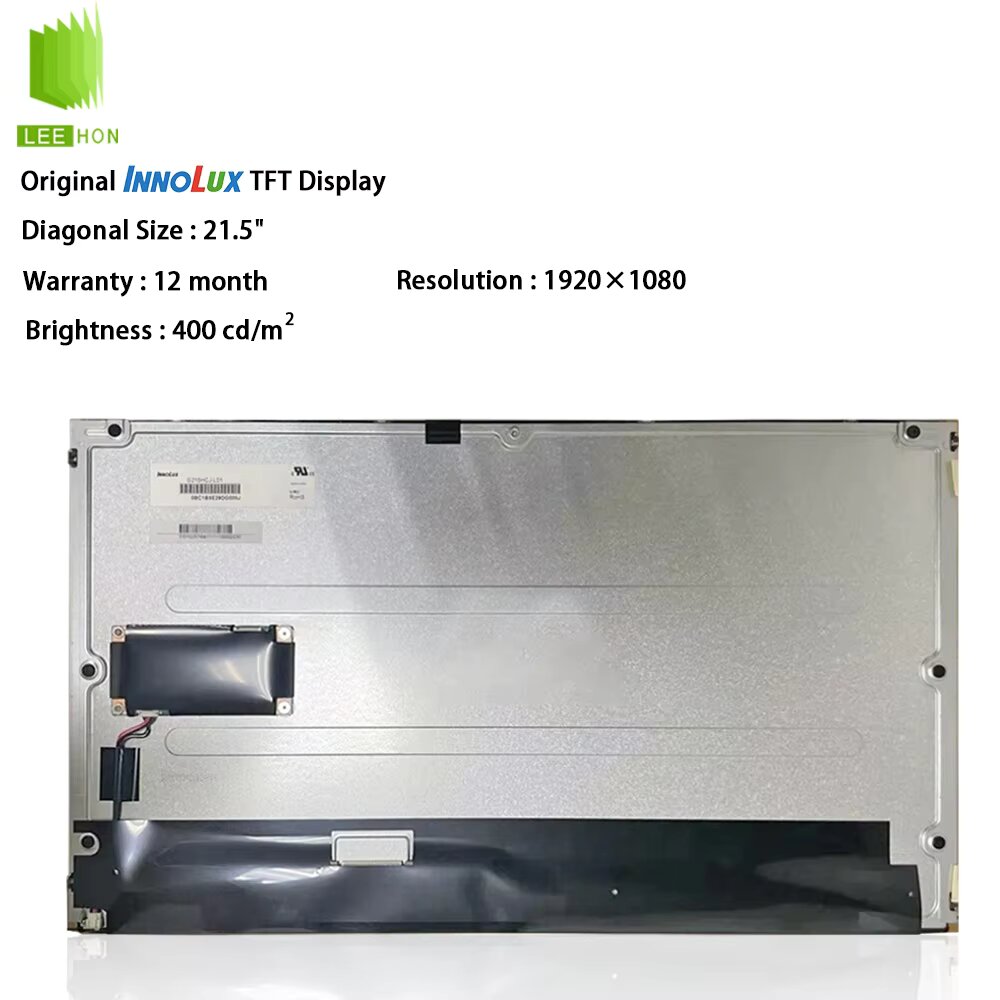

Innolux 21.5" 1920X1080 FHD LCD Display G215HCJ-L01 MES Panel 21.5 Inch LCD Modules

$115

Key attributesTypeTFTDisplay Size21.5 inchPlace of OriginTaiwan,ChinaSupplier Ty

Product Description

Key attributes

Type
TFT
Display Size
21.5 inch
Place of Origin
Taiwan,China
Supplier Type
Agent
Brand Name
AUO
Backlight Type
LED
Resolution
1920X1080, FHD 102PPI
Brightness
400 cd/m² (Typ.)
Operating Temperature
0 ~ 60 °C
Brand
Innolux
Display Type
IPS
Mounting Type
Panel Mounting
Screen Size
21.5"
Communication Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
View angle
89/89/89/89 (Typ.)
Contrast ratio
1000 : 1 (Typ.) (TM)
Backlight
WLED , 50K hours , With LED Driver
Response time
8/7 (Typ.)(Tr/Td) ms
Display Mode
AAS, Normally Black, Transmissive
Surface Treatment
Antiglare (Haze 25%), Hard coating (3H)
Total Consumption
20.85W (Max.)
Weight
2.1KG

Packaging and delivery

Selling Units
Single item
Single package size
54X34X10 cm
Single gross weight
2.000 kg

Lead time

Quantity (pieces)1 - 100> 100
Lead time (days)15To be negotiated

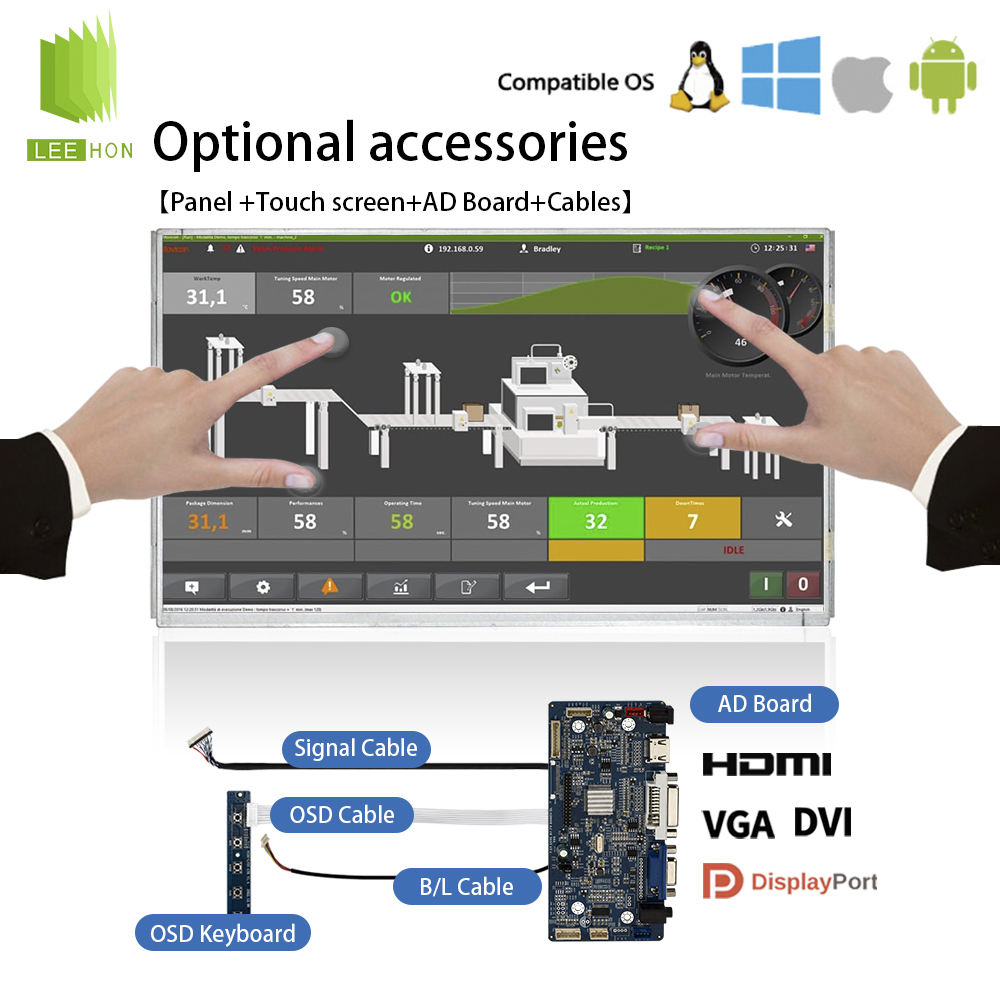

Customization options

Customized packaging (Min. order: 200 pieces)
LVDS cables (Min. order: 18 pieces)

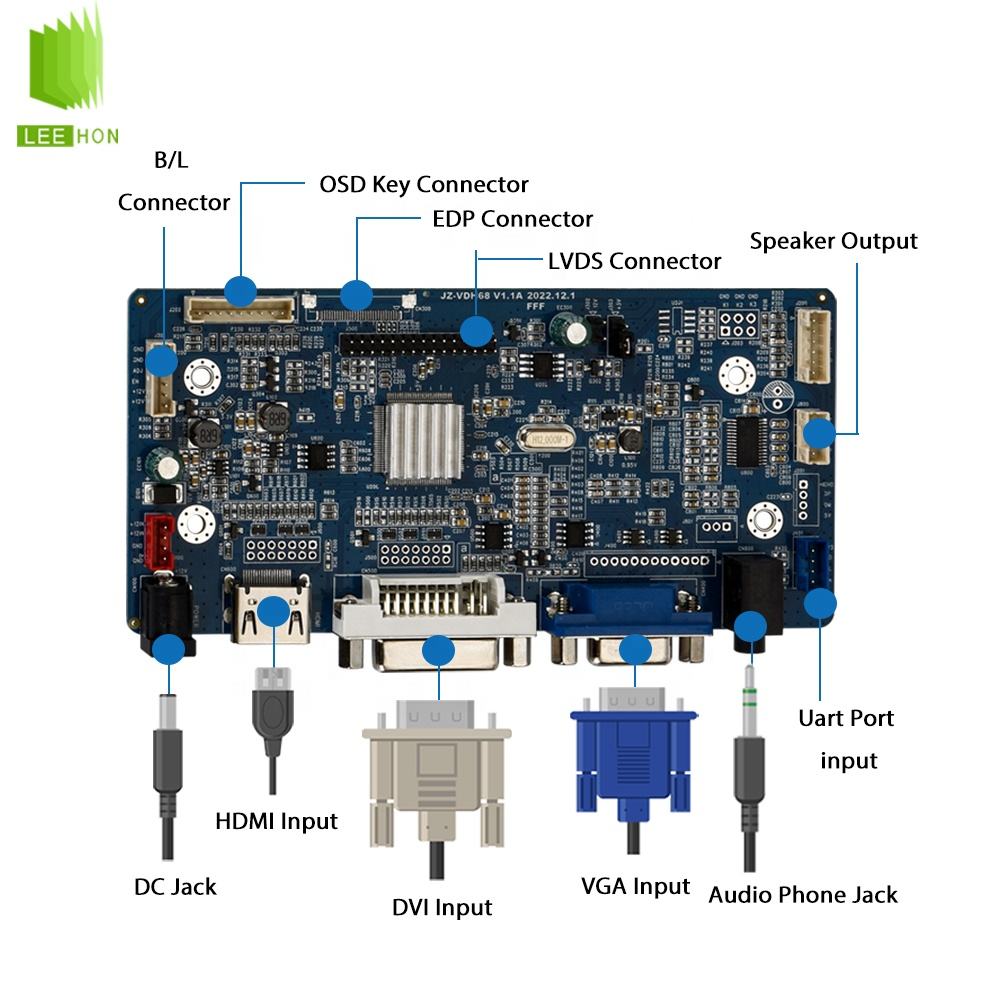

Driver board (Min. order: 18 pieces)
Touchscreen (Min. order: 27 pieces)

View details

Ratings & Reviews

5.0
Very satisfied
Based on 269 reviews forverified purchases
Supplier service5.0
On-time shipment5.0
Product quality5.0
AllWith photos/videos (36)

Show reviews that mention:

Good service (11)Nice transaction (1)Fast delivery (90)
Showing all reviews in your chosen languageShow original
S
S***y
France
Verified purchase
Dec 20, 2024
I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all
BOE 10.1 Inch Industrial Grade LCD Display 10.1 Inch LCD Module High Brightness IPS TFT LCD PanelSee product details
$24-28
Helpful (0)
S
S***y
France
Verified purchase
Dec 20, 2024
I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all
BOE 10.1 inch TFT LCD Display 1280x800 LCD Panel Screen High Contrast IPS TFT LCD moduleSee product details
$24-114
Helpful (1)
S
S***y
France
Verified purchase
Dec 20, 2024
I recently purchased the LEEHON product, and I must say, I am very impressed.The quality is excellent; it works as advertised and has exceeded my expectations.But Its price is a bit high compared to similar products on the market, but I believe the quality justifies it. In conclusion, I recommend the LEEHON product to anyone looking for a reliable and high-quality option....Show all
AUO 10.1 Inch LCD Screen Panel G101STN01.0 Industrial Terminal Control TFT LCD Display LCD ModuleSee product details
$40-46
Helpful (1)
Product Paramenters




Details Images
G215HCJ-L01       21.5 inch LCD Basic detail
LCD Modules Brand
Innolux
Model
G215HCJ-L01
Power consumption
20.85W (Max.)
Aspect Ratio
16:9 (H:V)
Resolution
1920(RGB)×1080, FHD 102PPI
Backlight
WLED , 50K hours , With LED Driver
Interface
LVDS (2 ch, 8-bit) , 30 pins Connector
Work Mode
AAS, Normally Black, Transmissive
Brightness
400 cd/m² (Typ.)
Response
8/7 (Typ.)(Tr/Td) ms
Contrast
1000 : 1
Color Depth
16.7M 73% NTSC
View Angle
89/89/89/89
Weight
2.1KG
Active Area (mm)
476.064(W)×267.786(H) mm
Work Temperature
0 ~ 60 °C

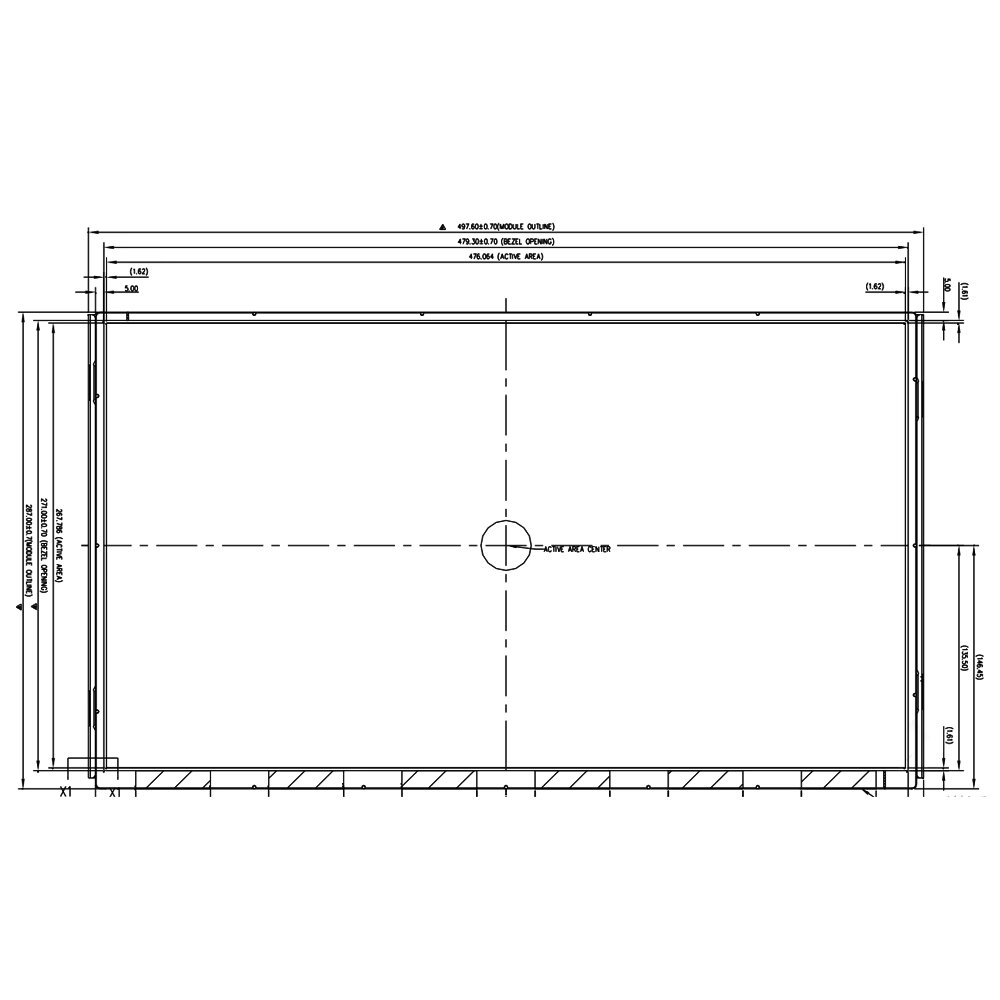

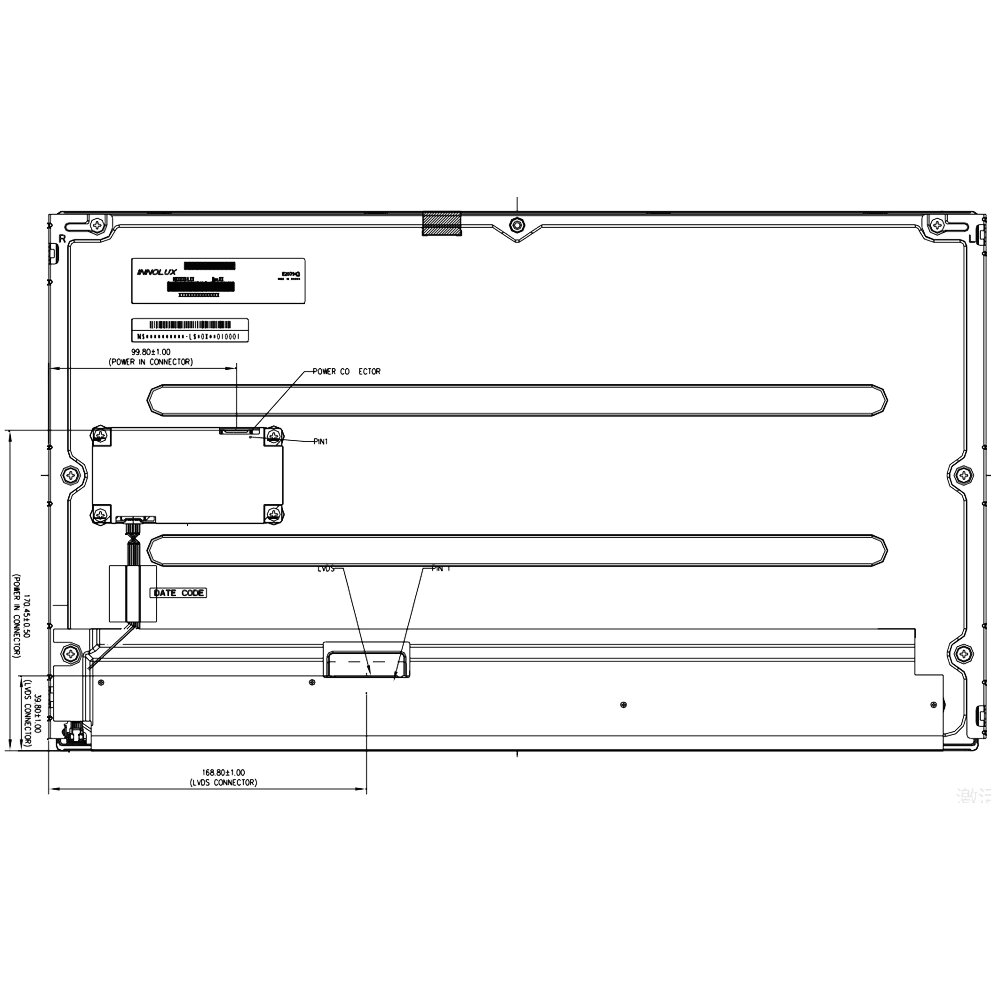

Outline Dimension
497.6 × 287 × 14 mm
Storage Temp
-20 ~ 60 °C





Popular Size
"Need a screen about 21.5'' 1920*1080 resolution LVDS interface LCD that survives your specs, not the other way around?"
→ Get your tailored LCD quote in 24 hours.
Brand
Model
Brightness
Contrast
Active Area
Work Temp
LED Life Time
AUO
G215HAN01.3
250
1000:1
476.064*267.786
0/60
50K
AUO
T215HVN01.1
250
3000:1
476.64*268.11
0/50
30K
AUO
G215HVN01.1
250
5000:1
476.64*268.11
0/60
50K
BOE
HR215WU1-120
250
1000:1
476.64*268.11
0/50
30K
AUO
G215HAN01.201
300
1000:1
476.064*267.786
0/60
50K
AUO
G215HAN01.6
300
1800:1
476.064*267.786
0/50
50K
AUO
G215HVN01.0
300
5000:1
476.64*268.11
0/60
50K
AUO
G215HAN01.2
350
1000:1
476.064*267.786
0/60
50K
AUO
G215HAN01.7
350
1000:1
476.064*267.786
0/50
30K
BOE
GV215FHM-N10
350
1000:1
476.64*268.11
-20/70
50K
AUO
G215HAN01.0
400
1000:1
476.064*267.786
0/60
50K
AUO
G215HAN01.501
500
1000:1
476.064*267.786
-10/60
50K
BOE
DV215FHM-NN0
500
1000:1
476.064*267.786
0/50
30K
BOE
UV215FHM-N10
500
1000:1
476.64*268.11
-20/80
30K
AUO
G215HVN01.3
1000
5000:1
476.64*268.11
-20/80
50K
AUO
G215HVN01.4
1500
5000:1
476.64*268.11
-20/80
50K
