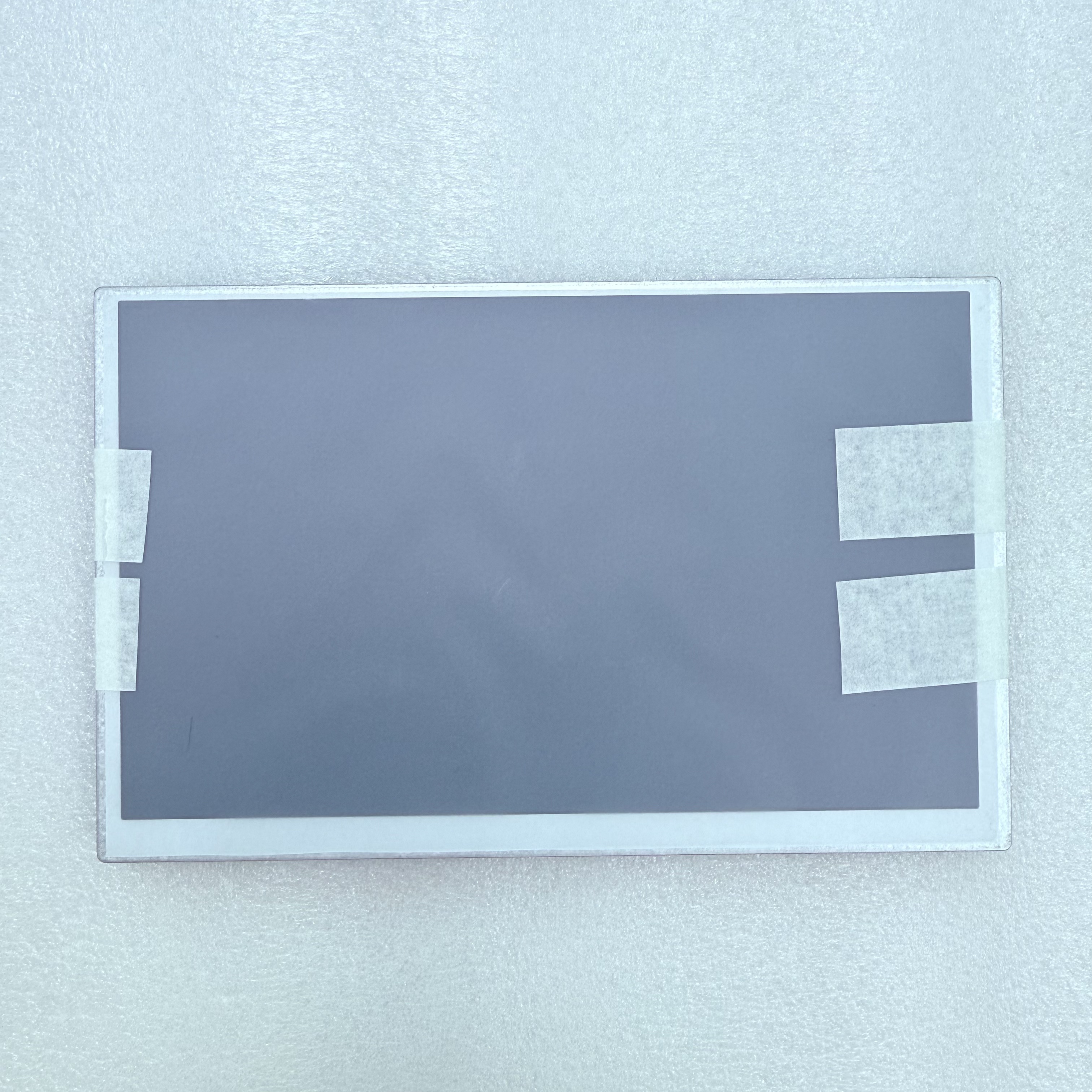

Kyocera T-57236GD026HU-T-AEN 2.6" IPS CELL COG 800×480 LVDS

$0

Kyocera T-57236GD026HU-T-AEN 2.6" IPS CELL COG 800480 LVDSSpecificationSyst

Product Description

Kyocera T-57236GD026HU-T-AEN 2.6" IPS CELL COG 800×480 LVDS


System Category :LCD/OLED/EPD Flat Panel > TN/STN LCD & TFT CELL
Brand :Kyocera
Series :T-57236GD026
Model :T-57236GD026HU-T-AEN
Keywords Desc. :Kyocera 2.6" IPS CELL COG 800×480 LVDS
Product Class :Graphic Display
Application :Automotive Display
Panel Type :LTPS TFT-LCD
Panel Size :2.6"
Resolution :800×480
Aspect Ratio :15:9 (W:H)
Form Factor :Flat Rectangle
Active Area :57.6 (W) × 34.56 (H) mm (A.A)
Outline Dimension :65.1 (W) × 44.66 (H) mm
Max. Depth :1.5 mm
LC Family :IPS
Polarizer :Transmissive
Contrast Ratio :1200:1 (Typ.)
Viewing Direction :Symmetry
Gray Depth :6/8-bit
Display Colors :262K/16.7M
Interface Type :LVDS
Input Voltage :3.3V (Typ.)
Operating Temp. :-40 ~ 105 °C
Storage Temp. :-40 ~ 105 °C
