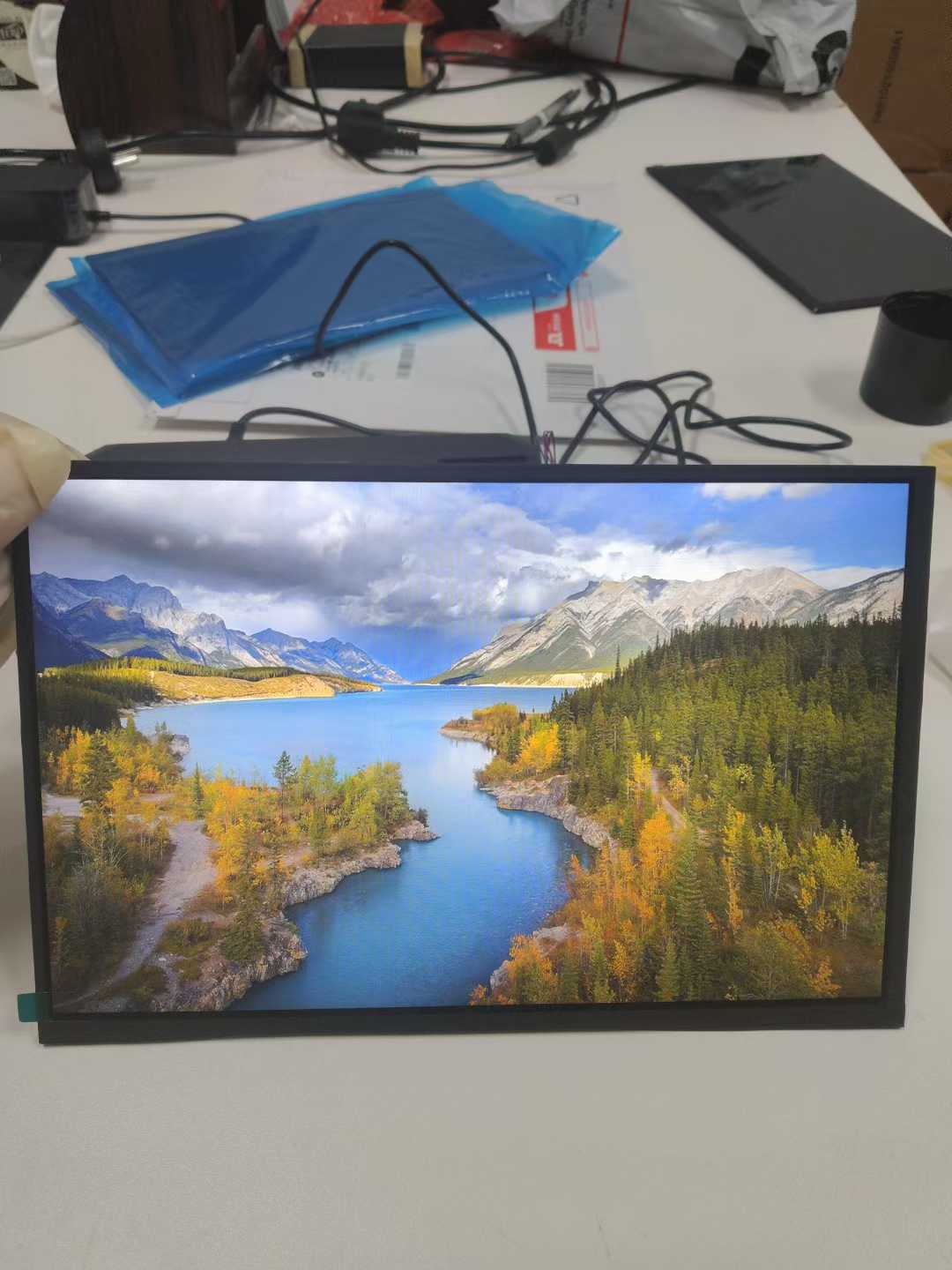

LG 31inch LB310FTM-SPA2 Lcd Screen 4200x2800 1200nit 72% 1500:1 true 10bit eDP ATW C/To

$0

LG 31inch LB310FTM-SPA2 Lcd Screen 4200x2800 1200nit 72% 1500:1 true 10bit eDP A

Product Description

LG 31inch LB310FTM-SPA2 Lcd Screen 4200x2800 1200nit 72% 1500:1 true 10bit eDP ATW C/To


  • Brand
  • LG Display
  • Model P/N
  • LB310FTM-SPA2
  • Diagonal Size
  • 31.0"
  • Panel Type
  • a-Si TFT-LCD, LCM
  • Resolution
  • 4200(RGB)×2800  163PPI
  • Pixel Format
  • RGB Vertical Stripe
  • Active Area
  • 652.68(W)×435.12(H) mm
  • Bezel Opening
  • 656.1(W)×438.5(H) mm
Outline(mm)
Luminance
Viewing Angle
Good View at
Color Depth
Mass
Refresh Rate
676.9(W)×459.7(H)×26.25(D)
1200 (Typ.)(cd/m²)
89/89/89/89 (Typ.)(CR≥10)
Symmetry
1.07B   98% sRGB
6.68/7.00Kgs (Typ./Max.)
60Hz
Treatment
Contrast Ratio
Work Mode
Response
Backlight
Used for
Touchscreen
Antiglare, Hard coating (3H)
1500 : 1 (Typ.) (TM)
IPS, Normally Black, Transmissive
14 (Typ.)(G to G) ms
WLED , 50K hours , With LED Driver
Without
Signal TypeeDP (8 Lanes) , HBR2 (5.4G/lane) , 60 pins Connector
Voltage Supply10.0V (Typ.)
Max. RatingsStorage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C


LG Display LB310FTM-SPA2 Mechanical Details

Pixel Features :
Pixel Format
4200(RGB)×2800
Dot Pitch
0.0518×0.1554 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1554×0.1554 mm (H×V)  [163PPI]
Mechanical Size :
Display Area
652.68×435.12 mm (H×V)
Bezel Area
656.1×438.5 mm (H×V)
Outline Dim.
676.9×459.7 mm (H×V)
Outline Depth
21/26.25 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:10 (H:V)
Shape Style
Holes & Brackets :
Side mounting holes, Rear mounting holes
Other Features :
Weight
6.68/7.00Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.
  •  Back to Top

LG Display LB310FTM-SPA2 Optical Details

Basic Information :
Brightness
1200 cd/m² (Typ.)
Contrast Ratio
1500:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.297; Wy:0.317
Color Numbers
1.07B (10-bit)
Color Temperature
7601K
Uniformity
1.25 (Max.)(11 points)
1931 Color Gamut :
NTSC Ratio
76%
sRGB
98% coverage
Adobe RGB
76% coverage
DCI-P3
79% coverage
Rec.2020
57% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-
