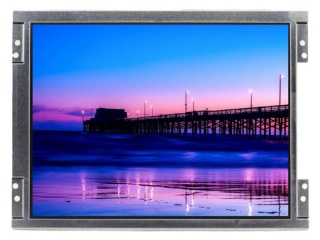

TCG084VGLAAANN-AN50 Kyocera 8.4" TN LCD PANEL 640×480 850nits 262K WLED TTL 40pins

TCG084VGLAAANN-AN50 Kyocera 8.4" TN LCD PANEL 640480 850nits 262K WLED TTL

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Kyocera
Series :	TCG084VGLAAANN
Model :	TCG084VGLAAANN-AN50
Keywords Desc. :	Kyocera 8.4" TN LCM 640×480 850nits 262K WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, High Brightness LCD, Sunlight Readable LCD
Application :	Industrial, Outdoor High Brightness
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	8.4"
Resolution :	640×480
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	170.88 (W) × 128.16 (H) mm (A.A)
Outline Dimension :	199.5 (W) × 147.4 (H) mm
Max. Depth :	9.5 mm
LC Family :	TN
Brightness :	850 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	65/65/60/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
