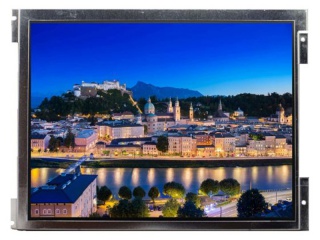

TCG104SVLBKANN-AN20 Kyocera 10.4" TN LCD PANEL 800×600 350nits WLED LVDS 30pins

TCG104SVLBKANN-AN20 Kyocera 10.4" TN LCD PANEL 800600 350nits WLED LVDS 30p

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Kyocera
Series :	TCG104SVLBKANN
Model :	TCG104SVLBKANN-AN20
Keywords Desc. :	Kyocera 10.4" TN LCM 800×600 350nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.4"
Resolution :	800×600
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	211.2 (W) × 158.4 (H) mm (A.A)

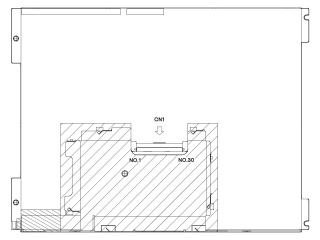

Outline Dimension :	240.7 (W) × 181.4 (H) mm
Max. Depth :	9.94 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	350 (Typ.)
Contrast Ratio :	900:1 (Typ.)
Viewing Angle :	80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
