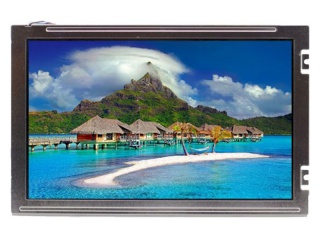

TCG085WVLQDPNN-GN00 Kyocera 8.5" IPS LCD PANEL 800×480 400nits WLED TTL 40pins

TCG085WVLQDPNN-GN00 Kyocera 8.5" IPS LCD PANEL 800480 400nits WLED TTL 40pi

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Kyocera
Series :	TCG085WVLQDPNN
Model :	TCG085WVLQDPNN-GN00
Keywords Desc. :	Kyocera 8.5" IPS LCM 800×480 400nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Healthcare, Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	8.5"
Resolution :	800×480
Aspect Ratio :	15:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	184.8 (W) × 110.88 (H) mm (A.A)
Outline Dimension :	210 (W) × 134 (H) mm
Max. Depth :	9.2 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	400 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
