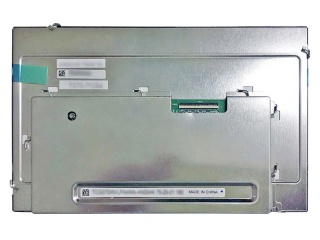

TCG070WVLPAANN-AN50-EA Kyocera 7" TN LCD PANEL 800×480 700nits WLED TTL 40pins

TCG070WVLPAANN-AN50-EA Kyocera 7" TN LCD PANEL 800480 700nits WLED TTL 40pi

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Kyocera
Series :	TCG070WVLPAANN
Model :	TCG070WVLPAANN-AN50-EA
Keywords Desc. :	Kyocera 7" TN LCM 800×480 700nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, High Brightness LCD, Sunlight Readable LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	7"
Resolution :	800×480
Aspect Ratio :	15:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	152.4 (W) × 91.44 (H) mm (A.A)
Outline Dimension :	165 (W) × 104.4 (H) mm
Max. Depth :	8.5 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	700 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	80/80/60/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	12 o'clock
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
