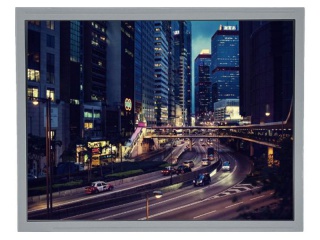

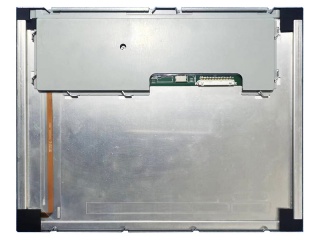

TCG104XGLPAPNN-AN40-S Kyocera 10.4" IPS LCD PANEL 1024×768 1300nits WLED LVDS 20pins

$0

TCG104XGLPAPNN-AN40-S Kyocera 10.4" IPS LCD PANEL 1024768 1300nits WLED LVD

Product Description

TCG104XGLPAPNN-AN40-S Kyocera 10.4" IPS LCD PANEL 1024×768 1300nits WLED LVDS 20pins

System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Kyocera
Series :TCG104XGLPAPNN
Model :TCG104XGLPAPNN-AN40-S
Keywords Desc. :Kyocera 10.4" IPS LCM 1024×768 1300nits WLED LVDS 20pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD
Application :Industrial, Outdoor High Brightness
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :10.4"
Resolution :1024×768
Aspect Ratio :4:3 (W:H)
Form Factor :Flat Rectangle
Active Area :210.4 (W) × 157.8 (H) mm (A.A)
Outline Dimension :230 (W) × 180.2 (H) mm
Max. Depth :11 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :1300 (Typ.)
Contrast Ratio :700:1 (Typ.)
Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :262K/16.7M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :20 Pins
Touch Panel :Without
Operating Temp. :-30 ~ 80 °C
Storage Temp. :-30 ~ 80 °C
