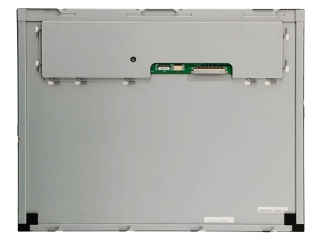

TCG121XGLPAPNN-AN24-S Kyocera 12.1" IPS LCD PANEL 1024×768 400nits WLED LVDS 20pins

$0

TCG121XGLPAPNN-AN24-S Kyocera 12.1" IPS LCD PANEL 1024768 400nits WLED LVDS

Product Description

TCG121XGLPAPNN-AN24-S Kyocera 12.1" IPS LCD PANEL 1024×768 400nits WLED LVDS 20pins

System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Kyocera
Series :TCG121XGLPAPNN
Model :TCG121XGLPAPNN-AN24-S
Keywords Desc. :Kyocera 12.1" IPS LCM 1024×768 400nits WLED LVDS 20pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD, Wide Temperature LCD, IPS LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :12.1"
Resolution :1024×768
Aspect Ratio :4:3 (W:H)
Form Factor :Flat Rectangle
Active Area :245.76 (W) × 184.32 (H) mm (A.A)
Outline Dimension :260.5 (W) × 203.4 (H) mm
Max. Depth :10.8 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :400 (Typ.)
Contrast Ratio :750:1 (Typ.)
Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :262K/16.2M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :20 Pins
Touch Panel :Without
Operating Temp. :-30 ~ 80 °C
Storage Temp. :-30 ~ 80 °C
