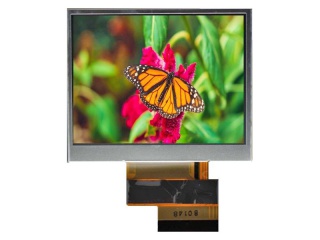

TCG035QVLAAANN-AN00 Kyocera 3.5" TN LCD PANEL 320×240 600nits WLED TTL 50pins

TCG035QVLAAANN-AN00 Kyocera 3.5" TN LCD PANEL 320240 600nits WLED TTL 50pin

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Kyocera
Series :	TCG035QVLPAANN
Model :	TCG035QVLAAANN-AN00
Keywords Desc. :	Kyocera 3.5" TN LCM 320×240 600nits WLED TTL 50pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	3.5"
Resolution :	320×240
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	70.56 (W) × 52.92 (H) mm (A.A)
Outline Dimension :	76.9 (W) × 63.9 (H) mm
Max. Depth :	5.2 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	600 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	12 o'clock
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	50 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
