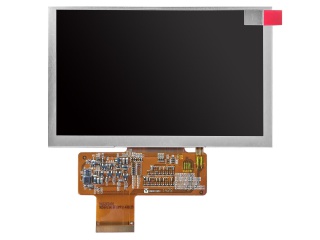

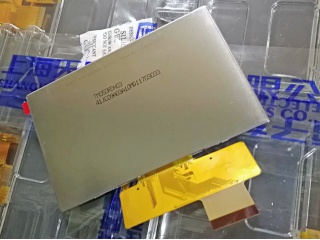

TM050RDH03-41 Tianma 5" TN LCD PANEL 800×480 250nits WLED TTL 40pins

TM050RDH03-41 Tianma 5" TN LCD PANEL 800480 250nits WLED TTL 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Tianma
Series :	TM050RDH
Model :	TM050RDH03-41
Keywords Desc. :	Tianma 5" TN LCM 800×480 250nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial, MID UMPC, MP3 PMP, Portable Navigation
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	5"
Resolution :	800×480
Aspect Ratio :	15:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	108 (W) × 64.8 (H) mm (A.A)
Outline Dimension :	120.7 (W) × 75.8 (H) mm
Max. Depth :	3.1 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	250 (Typ.)
Contrast Ratio :	600:1 (Typ.)
Viewing Angle :	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
