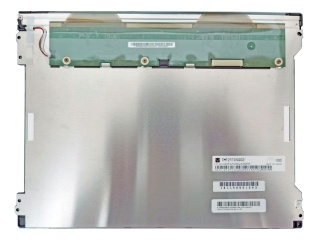

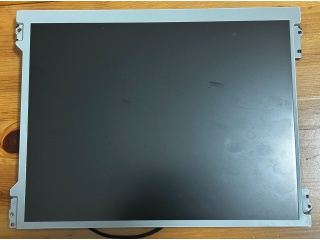

TM121TDSG02-00 Tianma 12.1" TN LCD PANEL 1024×768 450nits WLED LVDS 20pins

TM121TDSG02-00 Tianma 12.1" TN LCD PANEL 1024768 450nits WLED LVDS 20pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Tianma
Series :	TM121TDSG
Model :	TM121TDSG02-00
Keywords Desc. :	Tianma 12.1" TN LCM 1024×768 450nits WLED LVDS 20pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	12.1"
Resolution :	1024×768
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	245.76 (W) × 184.32 (H) mm (A.A)
Outline Dimension :	279 (W) × 209 (H) mm
Max. Depth :	9.1 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	450 (Typ.)
Contrast Ratio :	700:1 (Typ.)
Viewing Angle :	80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	20 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
