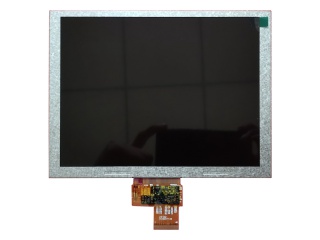

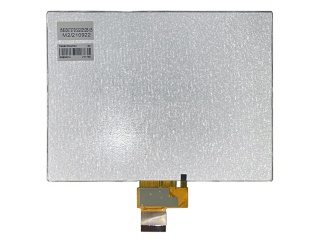

TM080TDGP02-00 Tianma 8" IPS LCD PANEL 1024×768 450nits WLED LVDS 40pins

TM080TDGP02-00 Tianma 8" IPS LCD PANEL 1024768 450nits WLED LVDS 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Tianma
Series :	TM080TDGP
Model :	TM080TDGP02-00
Keywords Desc. :	Tianma 8" IPS LCM 1024×768 450nits WLED LVDS 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	8"
Resolution :	1024×768
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	162.048 (W) × 121.536 (H) mm (A.A)
Outline Dimension :	183.43 (W) × 138.35 (H) mm
Max. Depth :	4.05 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	450 (Typ.)
Contrast Ratio :	1800:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
