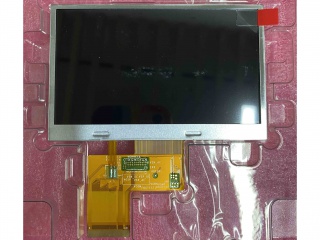

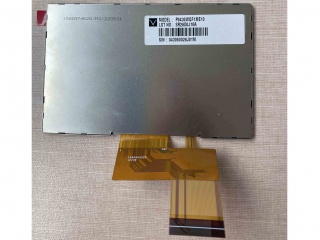

P0430WQF1ME10 Tianma 4.3" IPS LCD PANEL 480×272 400nits WLED TTL 40pins

P0430WQF1ME10 Tianma 4.3" IPS LCD PANEL 480272 400nits WLED TTL 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Tianma
Series :	P0430WQF1
Model :	P0430WQF1ME10
Keywords Desc. :	Tianma 4.3" IPS LCM 480×272 400nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Industrial, MP3 PMP, Portable Navigation
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	4.3"
Resolution :	480×272
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	95.04 (W) × 53.856 (H) mm (A.A)
Outline Dimension :	105.5 (W) × 67.2 (H) mm
Max. Depth :	3.2 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	400 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
