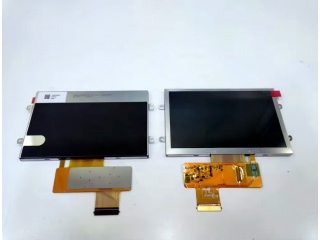

TM050RDZG03-00 Tianma 5" TN LCD PANEL 800×480 1000nits WLED TTL 40pins

TM050RDZG03-00 Tianma 5" TN LCD PANEL 800480 1000nits WLED TTL 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Tianma
Series :	TM050RDZG
Model :	TM050RDZG03-00
Keywords Desc. :	Tianma 5" TN LCM 800×480 1000nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	5"
Resolution :	800×480
Aspect Ratio :	15:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	108 (W) × 64.8 (H) mm (A.A)

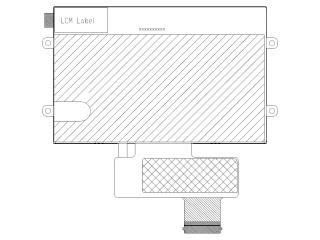

Outline Dimension :	120.7 (W) × 77.8 (H) mm
Max. Depth :	5.9 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	1000 (Typ.)
Contrast Ratio :	750:1 (Typ.)
Viewing Angle :	80/80/70/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-40 ~ 90 °C
