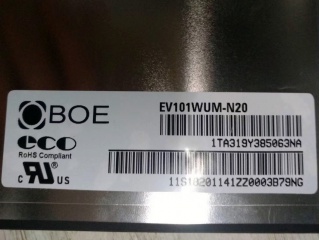

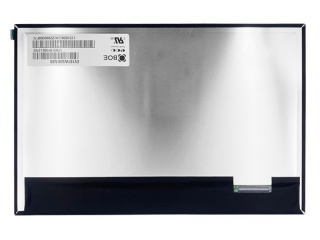

EV101WUM-N20 BOE 10.1" IPS LCD PANEL 1920×1200 600nits WLED LVDS 45pins

EV101WUM-N20 BOE 10.1" IPS LCD PANEL 19201200 600nits WLED LVDS 45pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	BOE
Series :	EV101WUM
Model :	EV101WUM-N20
Keywords Desc. :	BOE 10.1" IPS LCM 1920×1200 600nits WLED LVDS 45pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.1"
Resolution :	1920×1200
Aspect Ratio :	16:10 (W:H)
Form Factor :	Flat Rectangle
Active Area :	216.806 (W) × 135.504 (H) mm (A.A)
Outline Dimension :	228.41 (W) × 149.22 (H) mm
Max. Depth :	4.6 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	600 (Typ.)
Contrast Ratio :	900:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	45 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-25 ~ 80 °C
