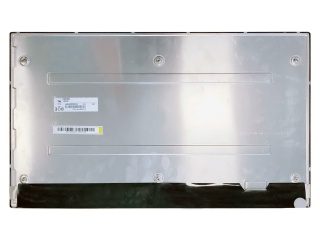

EV238FHM-N21 BOE 23.8" IPS LCD Panel 1920×1080 600nits WLED LVDS 30pins

EV238FHM-N21 BOE 23.8" IPS LCD Panel 19201080 600nits WLED LVDS 30pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	BOE
Series :	EV238FHM
Model :	EV238FHM-N21
Keywords Desc. :	BOE 23.8" IPS LCM 1920×1080 600nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Medical Imaging
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	23.8"
Resolution :	1920×1080
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	527.04 (W) × 296.46 (H) mm (A.A)
Outline Dimension :	543.1 (W) × 317.4 (H) mm
Max. Depth :	15.3 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	600 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	0 ~ 50 °C
Storage Temp. :	-20 ~ 60 °C
