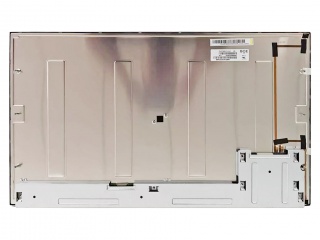

EV270QUM-N10 BOE 27" IPS LCD Panel 3840×2160 1000nits WLED eDP 30pins

EV270QUM-N10 BOE 27" IPS LCD Panel 38402160 1000nits WLED eDP 30pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	BOE
Series :	EV270QUM

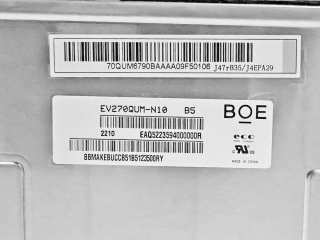

Model :	EV270QUM-N10
Keywords Desc. :	BOE 27" IPS LCM 3840×2160 1000nits WLED eDP 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, High Brightness LCD, Sunlight Readable LCD, IPS LCD
Application :	Medical Imaging
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	27"
Resolution :	3840×2160
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	596.736 (W) × 335.664 (H) mm (A.A)
Outline Dimension :	630 (W) × 368.2 (H) mm
Max. Depth :	21.38 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	1000 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	1.07B
Backlight Type :	WLED
Interface Type :	eDP
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	0 ~ 50 °C
Storage Temp. :	-20 ~ 60 °C
