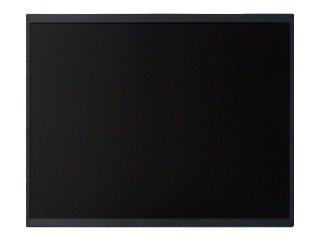

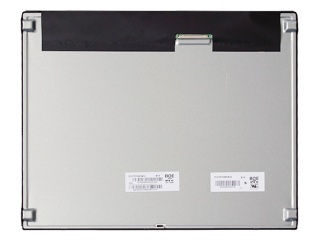

DV170YGM-N10 BOE 17" IPS LCD Panel 1280×960 250nits WLED LVDS 30pins

DV170YGM-N10 BOE 17" IPS LCD Panel 1280960 250nits WLED LVDS 30pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	BOE
Series :	DV170YGM
Model :	DV170YGM-N10
Keywords Desc. :	BOE 17" IPS LCM 1280×960 250nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Digital Signage
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	17"
Resolution :	1280×960
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	345.408 (W) × 259.056 (H) mm (A.A)
Outline Dimension :	359 (W) × 284.8 (H) mm
Max. Depth :	13.3 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	250 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	0 ~ 50 °C
Storage Temp. :	-20 ~ 60 °C
