GV190E0M-N10 BOE 19" IPS LCD Panel 1280×1024 400nits WLED LVDS 30pins

$0

GV190E0M-N10 BOE 19" IPS LCD Panel 12801024 400nits WLED LVDS 30pins

Product Description

GV190E0M-N10 BOE 19" IPS LCD Panel 1280×1024 400nits WLED LVDS 30pins


System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :BOE
Series :GV190E0M
Model :GV190E0M-N10
Keywords Desc. :BOE 19" IPS LCM 1280×1024 400nits WLED LVDS 30pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD, IPS LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :19"
Resolution :1280×1024
Aspect Ratio :5:4 (W:H)
Form Factor :Flat Rectangle
Active Area :374.784 (W) × 299.827 (H) mm (A.A)

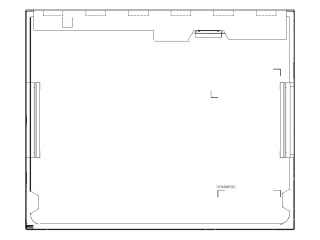

Outline Dimension :396 (W) × 324 (H) mm
Max. Depth :12.13 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :400 (Typ.)
Contrast Ratio :1000:1 (Typ.)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :16.7M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :30 Pins
Touch Panel :Without
Operating Temp. :-10 ~ 55 °C
Storage Temp. :-20 ~ 60 °C
