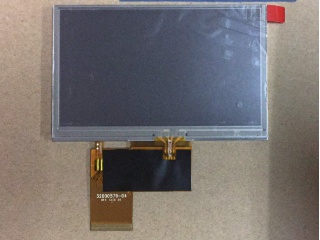

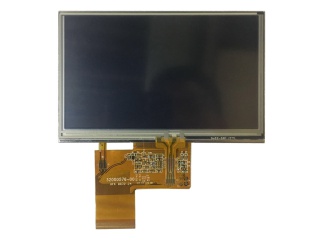

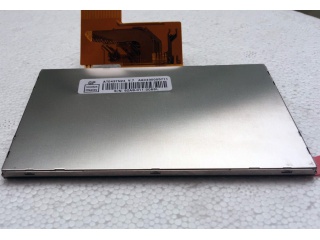

AT043TN24 V.7 Innolux 4.3" TN LCD Panel 480×272 500nits WLED TTL 40pins RTP

$0

Product Description




System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Innolux
Series :AT043TN24
Model :AT043TN24 V.7
Keywords Desc. :Innolux 4.3" TN LCM 480×272 500nits WLED TTL 40pins RTP
Product Class :Graphic Display
Product Tags :Color TFT-LCD, Resistive Touch LCD
Application :Automotive Display, MP3 PMP, Portable Navigation
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :4.3"
Resolution :480×272
Aspect Ratio :16:9 (W:H)
Form Factor :Flat Rectangle
Active Area :95.04 (W) × 53.856 (H) mm (A.A)
Outline Dimension :105.5 (W) × 67.2 (H) mm
Max. Depth :3.1 mm
LC Family :TN
Polarizer :Transmissive
Brightness :500 (Typ.)
Contrast Ratio :500:1 (Typ.)
Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
Display Colors :16.7M
Backlight Type :WLED
Interface Type :TTL
Interface Pins :40 Pins
Touch Panel :4-wire Resistive Touch
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 80 °C
