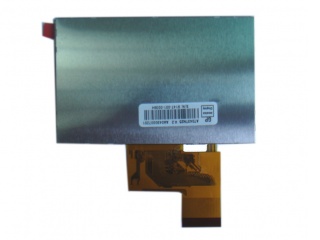

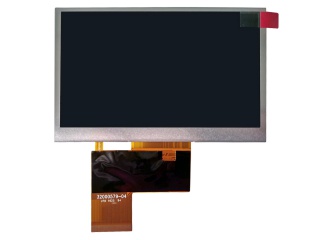

AT043TN25 V.2 Innolux 4.3" TN LCD Panel 480×272 500nits WLED TTL 40pins

AT043TN25 V.2 Innolux 4.3" TN LCD Panel 480272 500nits WLED TTL 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	AT043TN25
Model :	AT043TN25 V.2
Keywords Desc. :	Innolux 4.3" TN LCM 480×272 500nits WLED TTL 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Automotive Display, Portable Navigation
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	4.3"
Resolution :	480×272
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	95.04 (W) × 53.856 (H) mm (A.A)
Outline Dimension :	105.5 (W) × 67.2 (H) mm
Max. Depth :	3.1 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	500 (Typ.)
Contrast Ratio :	500:1 (Typ.)
Viewing Angle :	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
