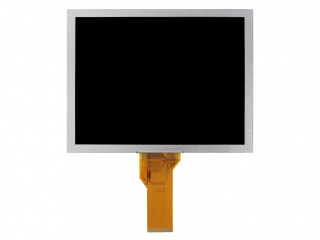

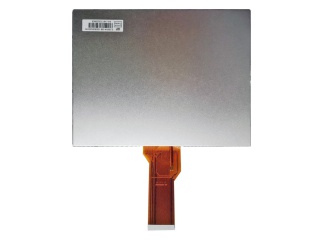

EJ080NA-05B Innolux 8" TN LCD Panel 800×600 300nits WLED TTL 50pins

EJ080NA-05B Innolux 8" TN LCD Panel 800600 300nits WLED TTL 50pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	EJ080NA-05

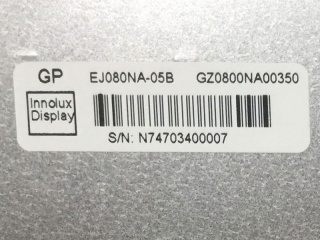

Model :	EJ080NA-05B
Keywords Desc. :	Innolux 8" TN LCM 800×600 300nits WLED TTL 50pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Digital Photo Frame, Portable DVD Player
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	8"
Resolution :	800×600
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	162 (W) × 121.5 (H) mm (A.A)
Outline Dimension :	183 (W) × 141 (H) mm
Max. Depth :	5.9 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	300 (Typ.)
Contrast Ratio :	1000:1 (Typ.)
Viewing Angle :	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K/16.7M
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	50 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
