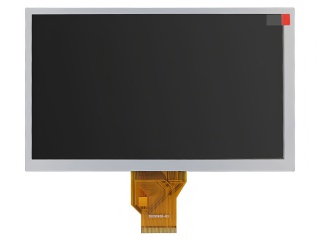

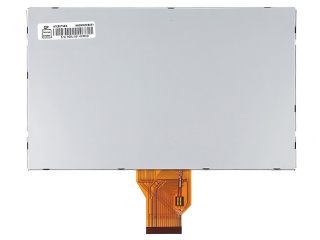

AT080TN64 Innolux 8" TN LCD Panel 800×480 500nits WLED TTL 50pins

AT080TN64 Innolux 8" TN LCD Panel 800480 500nits WLED TTL 50pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	AT080TN64

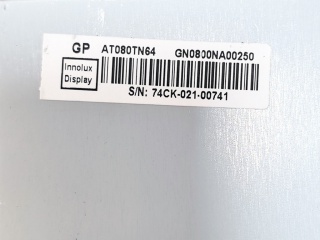

Model :	AT080TN64
Keywords Desc. :	Innolux 8" TN LCM 800×480 500nits WLED TTL 50pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD
Application :	Automotive Display
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	8"
Resolution :	800×480
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	176.64 (W) × 99.36 (H) mm (A.A)
Outline Dimension :	192.8 (W) × 116.9 (H) mm
Max. Depth :	6.7 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	500 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K/16.2M
Backlight Type :	WLED

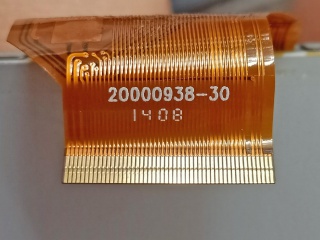

Interface Type :	TTL
Interface Pins :	50 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-30 ~ 85 °C
