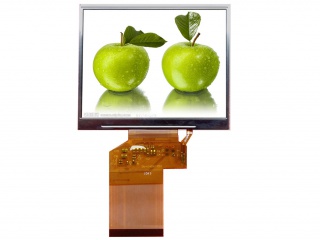

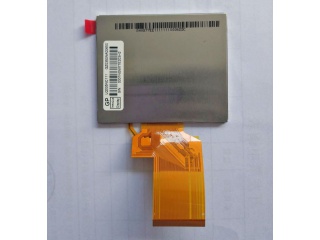

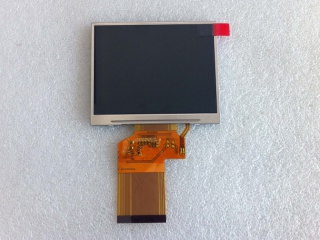

LQ035NC111 Innolux 3.5" TN LCD Panel 320×240 300nits WLED Parallel/Serial 54pins

LQ035NC111 Innolux 3.5" TN LCD Panel 320240 300nits WLED Parallel/Serial 54

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	LQ035NC11
Model :	LQ035NC111
Keywords Desc. :	Innolux 3.5" TN LCM 320×240 300nits WLED Parallel/Serial 54pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Digital Still Camera, Digital Video Camera, Handheld & PDA, Portable Navigation
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	3.5"
Resolution :	320×240
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	70.08 (W) × 52.56 (H) mm (A.A)
Outline Dimension :	76.9 (W) × 63.9 (H) mm
Max. Depth :	3.46 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	300 (Typ.)
Contrast Ratio :	400:1 (Typ.)
Viewing Angle :	60/60/50/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	Parallel/Serial
Interface Pins :	54 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 80 °C
