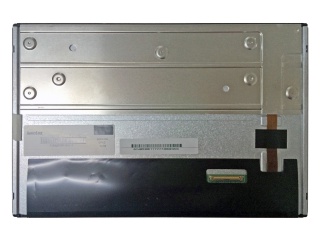

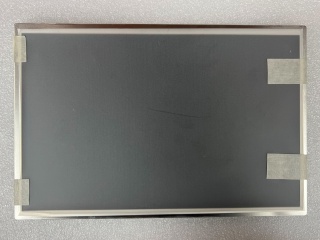

G101ICE-L01 Innolux 10.1" IPS LCD Panel 1280×800 500nits WLED LVDS 40pins

G101ICE-L01 Innolux 10.1" IPS LCD Panel 1280800 500nits WLED LVDS 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	G101ICE

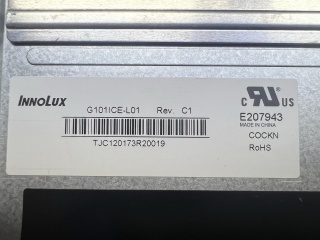

Model :	G101ICE-L01
Keywords Desc. :	Innolux 10.1" IPS LCM 1280×800 500nits WLED LVDS 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.1"
Resolution :	1280×800
Aspect Ratio :	16:10 (W:H)
Form Factor :	Flat Rectangle
Active Area :	216.96 (W) × 135.6 (H) mm (A.A)
Outline Dimension :	230.7 (W) × 152.55 (H) mm
Max. Depth :	7 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	500 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-25 ~ 70 °C
