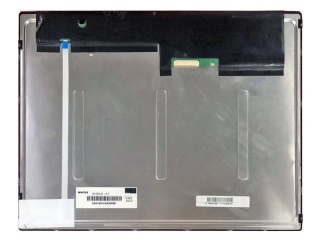

R150XJE-L01 Innolux 15" VA LCD Panel 1024×768 350nits WLED LVDS 20pins

R150XJE-L01 Innolux 15" VA LCD Panel 1024768 350nits WLED LVDS 20pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	R150XJE
Model :	R150XJE-L01
Keywords Desc. :	Innolux 15" VA LCM 1024×768 350nits WLED LVDS 20pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD
Application :	Healthcare
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	15"
Resolution :	1024×768
Aspect Ratio :	4:3 (W:H)
Form Factor :	Flat Rectangle
Active Area :	304.128 (W) × 228.096 (H) mm (A.A)
Outline Dimension :	326.5 (W) × 253.5 (H) mm
Max. Depth :	9.6 mm
LC Family :	VA
Polarizer :	Transmissive
Brightness :	350 (Typ.)
Contrast Ratio :	2500:1 (Typ.)
Viewing Angle :	85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	20 Pins
Touch Panel :	Without
Operating Temp. :	-10 ~ 65 °C
Storage Temp. :	-25 ~ 65 °C
