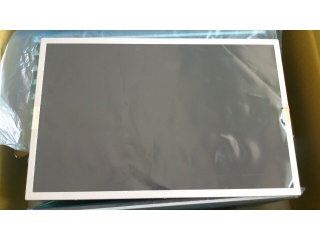

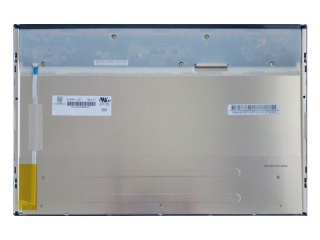

G154I1-LE1 Innolux 15.4" TN LCD Panel 1280×800 450nits WLED LVDS 30pins

G154I1-LE1 Innolux 15.4" TN LCD Panel 1280800 450nits WLED LVDS 30pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	G154I1
Model :	G154I1-LE1
Keywords Desc. :	Innolux 15.4" TN LCM 1280×800 450nits WLED LVDS 30pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD
Application :	Gaming, Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	15.4"
Resolution :	1280×800
Aspect Ratio :	16:10 (W:H)
Form Factor :	Flat Rectangle
Active Area :	331.2 (W) × 207 (H) mm (A.A)
Outline Dimension :	352 (W) × 230 (H) mm
Max. Depth :	9.5 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	450 (Typ.)
Contrast Ratio :	700:1 (Typ.)
Viewing Angle :	80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Display Colors :	262K/16.2M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	30 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 80 °C
Storage Temp. :	-30 ~ 80 °C
