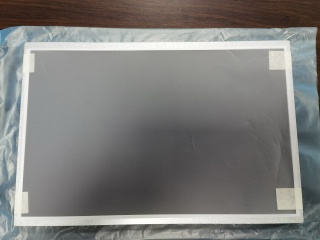

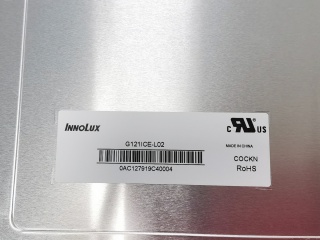

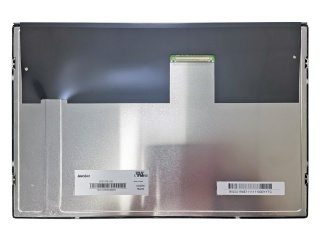

G121ICE-L02 Innolux 12.1" IPS LCD Panel 1280×800 400nits WLED LVDS 30pins

$0

G121ICE-L02 Innolux 12.1" IPS LCD Panel 1280800 400nits WLED LVDS 30pins

Product Description

G121ICE-L02 Innolux 12.1" IPS LCD Panel 1280×800 400nits WLED LVDS 30pins


System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Innolux
Series :G121ICE
Model :G121ICE-L02
Keywords Desc. :Innolux 12.1" IPS LCM 1280×800 400nits WLED LVDS 30pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD, IPS LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :12.1"
Resolution :1280×800
Aspect Ratio :16:10 (W:H)
Form Factor :Flat Rectangle
Active Area :261.12 (W) × 163.2 (H) mm (A.A)
Outline Dimension :278 (W) × 184 (H) mm
Max. Depth :10.5 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :400 (Typ.)
Contrast Ratio :1000:1 (Typ.)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :262K/16.7M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :30 Pins
Touch Panel :Without
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-20 ~ 70 °C
