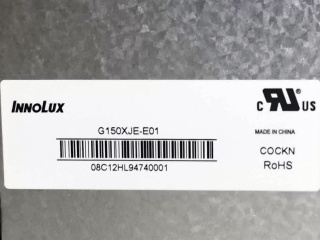

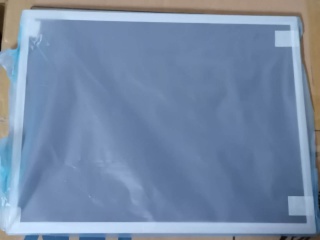

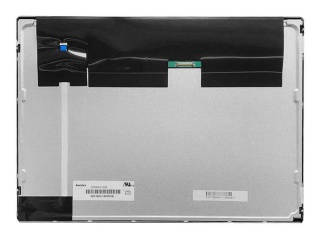

G150XJE-E01 Innolux 15" VA LCD Panel 1024×768 400nits WLED eDP 30pins

$0

G150XJE-E01 Innolux 15" VA LCD Panel 1024768 400nits WLED eDP 30pins

Product Description

G150XJE-E01 Innolux 15" VA LCD Panel  1024×768 400nits WLED eDP 30pins


System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Innolux
Series :G150XJE
Model :G150XJE-E01
Keywords Desc. :Innolux 15" VA LCM 1024×768 400nits WLED eDP 30pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD
Application :Gaming, Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :15"
Resolution :1024×768
Aspect Ratio :4:3 (W:H)
Form Factor :Flat Rectangle
Active Area :304.128 (W) × 228.096 (H) mm (A.A)
Outline Dimension :326.5 (W) × 253.5 (H) mm
Max. Depth :9.6 mm
LC Family :VA
Polarizer :Transmissive
Brightness :400 (Typ.)
Contrast Ratio :2500:1 (Typ.)
Viewing Angle :88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :262K/16.7M
Backlight Type :WLED
Interface Type :eDP
Interface Pins :30 Pins
Touch Panel :Without
Operating Temp. :-20 ~ 70 °C
Storage Temp. :-30 ~ 70 °C
