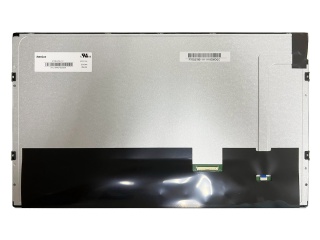

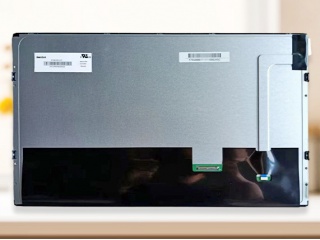

G156HCE-LN1 Innolux 15.6" IPS LCD Panel 1920×1080 350nits WLED LVDS 40pins

G156HCE-LN1 Innolux 15.6" IPS LCD Panel 19201080 350nits WLED LVDS 40pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	G156HCE
Model :	G156HCE-LN1
Keywords Desc. :	Innolux 15.6" IPS LCM 1920×1080 350nits WLED LVDS 40pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, IPS LCD
Application :	Gaming, Industrial
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	15.6"
Resolution :	1920×1080
Aspect Ratio :	16:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	344.16 (W) × 193.59 (H) mm (A.A)
Outline Dimension :	363.8 (W) × 215.9 (H) mm
Max. Depth :	9.8 mm
LC Family :	IPS
Polarizer :	Transmissive
Brightness :	350 (Typ.)
Contrast Ratio :	800:1 (Typ.)
Viewing Angle :	89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	Symmetry
Display Colors :	16.7M
Backlight Type :	WLED
Interface Type :	LVDS
Interface Pins :	40 Pins
Touch Panel :	Without
Operating Temp. :	-20 ~ 70 °C
Storage Temp. :	-30 ~ 70 °C
