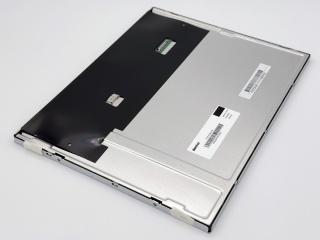

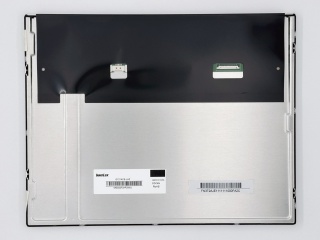

G121ACE-LH2 Innolux 12.1" IPS LCD Panel 800×600 600nits WLED LVDS 30pins

$0

G121ACE-LH2 Innolux 12.1" IPS LCD Panel 800600 600nits WLED LVDS 30pins

Product Description

G121ACE-LH2 Innolux 12.1" IPS LCD Panel  800×600 600nits WLED LVDS 30pins


System Category :LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :Innolux
Series :G121ACE
Model :G121ACE-LH2
Keywords Desc. :Innolux 12.1" IPS LCM 800×600 600nits WLED LVDS 30pins
Product Class :Graphic Display
Product Tags :Color TFT-LCD, Wide Temperature LCD, IPS LCD
Application :Industrial
Panel Type :a-Si TFT-LCD
Panel Composition :LCM
Panel Size :12.1"
Resolution :800×600
Aspect Ratio :4:3 (W:H)
Form Factor :Flat Rectangle
Active Area :246 (W) × 184.5 (H) mm (A.A)
Outline Dimension :260.5 (W) × 204 (H) mm
Max. Depth :8.9 mm
LC Family :IPS
Polarizer :Transmissive
Brightness :600 (Typ.)
Contrast Ratio :1000:1 (Typ.)
Viewing Angle :88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
Display Colors :262K/16.7M
Backlight Type :WLED
Interface Type :LVDS
Interface Pins :30 Pins
Touch Panel :Without
Operating Temp. :-30 ~ 85 °C
Storage Temp. :-30 ~ 85 °C
