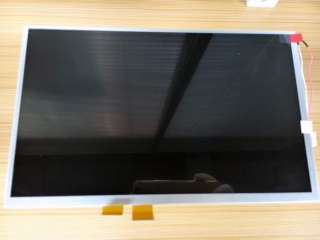

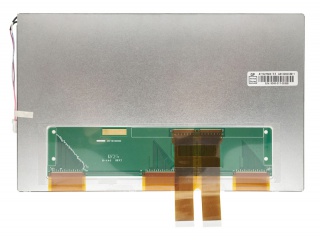

AT102TN03 V.8 Innolux 10.2" TN LCD Panel 800×480 350nits WLED TTL 60pins

AT102TN03 V.8 Innolux 10.2" TN LCD Panel 800480 350nits WLED TTL 60pins

Product Description

System Category :	LCD/OLED/EPD Flat Panel > TFT-LCD Panel
Brand :	Innolux
Series :	AT102TN03

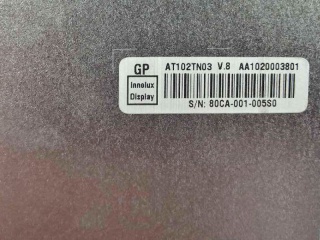

Model :	AT102TN03 V.8
Keywords Desc. :	Innolux 10.2" TN LCM 800×480 350nits WLED TTL 60pins
Product Class :	Graphic Display
Product Tags :	Color TFT-LCD, Wide Temperature LCD
Application :	Automotive Display
Panel Type :	a-Si TFT-LCD
Panel Composition :	LCM
Panel Size :	10.2"
Resolution :	800×480
Aspect Ratio :	15:9 (W:H)
Form Factor :	Flat Rectangle
Active Area :	222 (W) × 132.48 (H) mm (A.A)
Outline Dimension :	235 (W) × 145.8 (H) mm
Max. Depth :	6.4 mm
LC Family :	TN
Polarizer :	Transmissive
Brightness :	350 (Typ.)
Contrast Ratio :	300:1 (Typ.)
Viewing Angle :	65/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :	6 o'clock
Display Colors :	262K
Backlight Type :	WLED
Interface Type :	TTL
Interface Pins :	60 Pins
Touch Panel :	Without
Operating Temp. :	-30 ~ 85 °C
Storage Temp. :	-30 ~ 85 °C
